Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Ground distribution – circuit diagram
Ground distributionGround distribution – circuit diagram

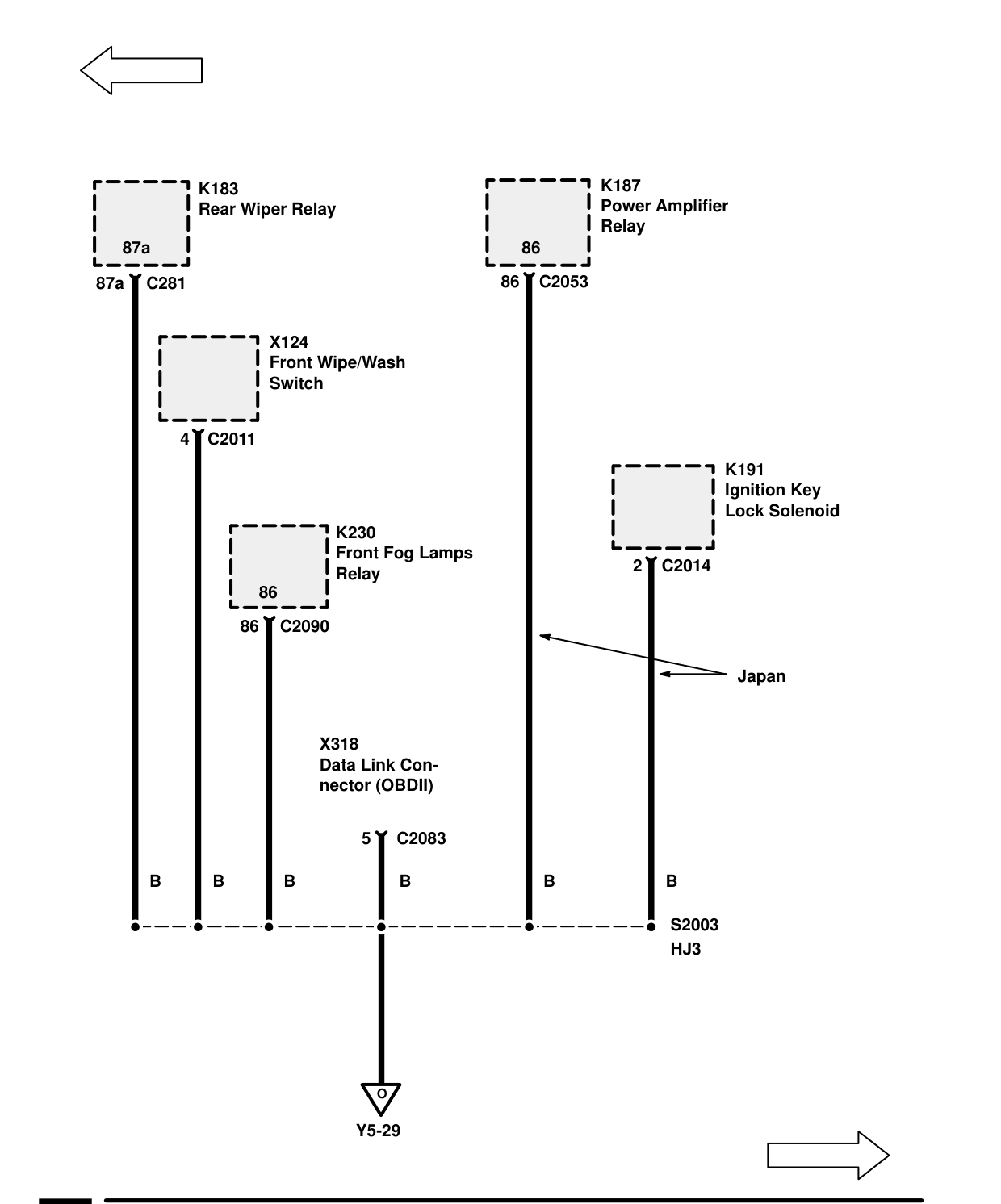

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- K183 Rear Wiper Relay
- K187 Power Amplifier Relay
- K191 Ignition Key Lock Solenoid
- K230 Front Fog Lamps Relay
- X124 Front Wipe/Wash Switch
- X318 Data Link Connector (OBDII)
