ENGINE - V8
12-2-8
DESCRIPTION AND OPERATION

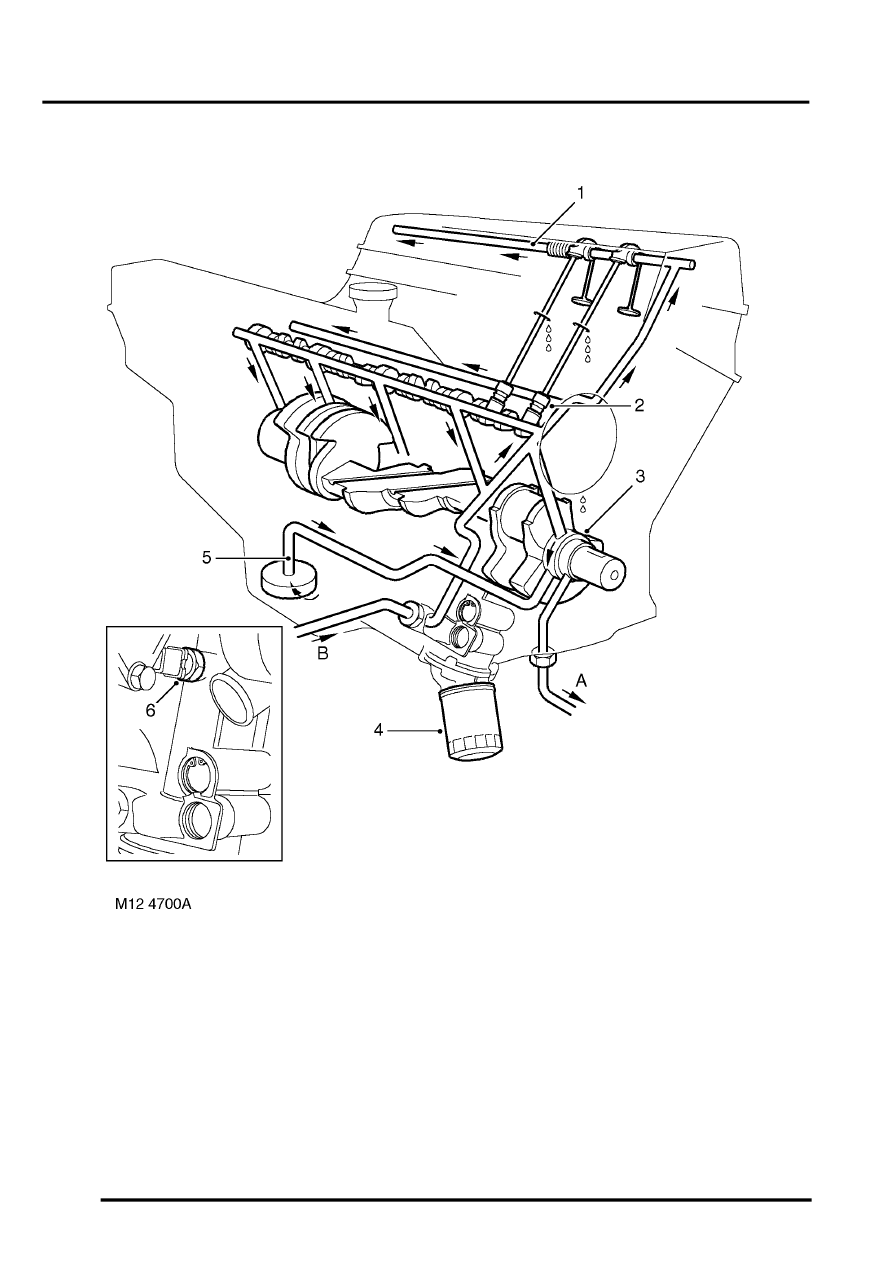

Lubrication
A - To oil cooler, B - From oil cooler
NOTE: The oil cooler is only fitted to vehicles up to VIN 756821.
1 Rocker shaft assembly
2 Hydraulic tappet
3 Oil pump
4 Oil filter element
5 Oil pick-up pipe and strainer
6 Oil pressure switch
