Discovery II
IN CAR ENTERTAINMENT
86-6-8
DESCRIPTION AND OPERATION
Multi function buttons
The music symbol button is used for mode selection for adjustment of bass, treble etc. depending on current mode
selected. Operation of presets 1-6 depends on current mode of operation and allows selection of radio band (Radio
mode on) or CD-autochanger disc (in the CD mode). Search/Seek (Mode dependent) manual or automatic selection
of band or track. MAN (mode dependent) when pressed the button allows manual operation or alternate mode
selections such as manual tuning, compact disk cue/review, tape forward/rewind modes. The mode dependent SCAN
button allows automatic searching of radio bands, tape or compact disk tracks.
Internal memory
An internal memory chip stores the station presets and security code, power is supplied internally to the chip via a
permanent power feed, supplied from the passenger compartment fuse box.

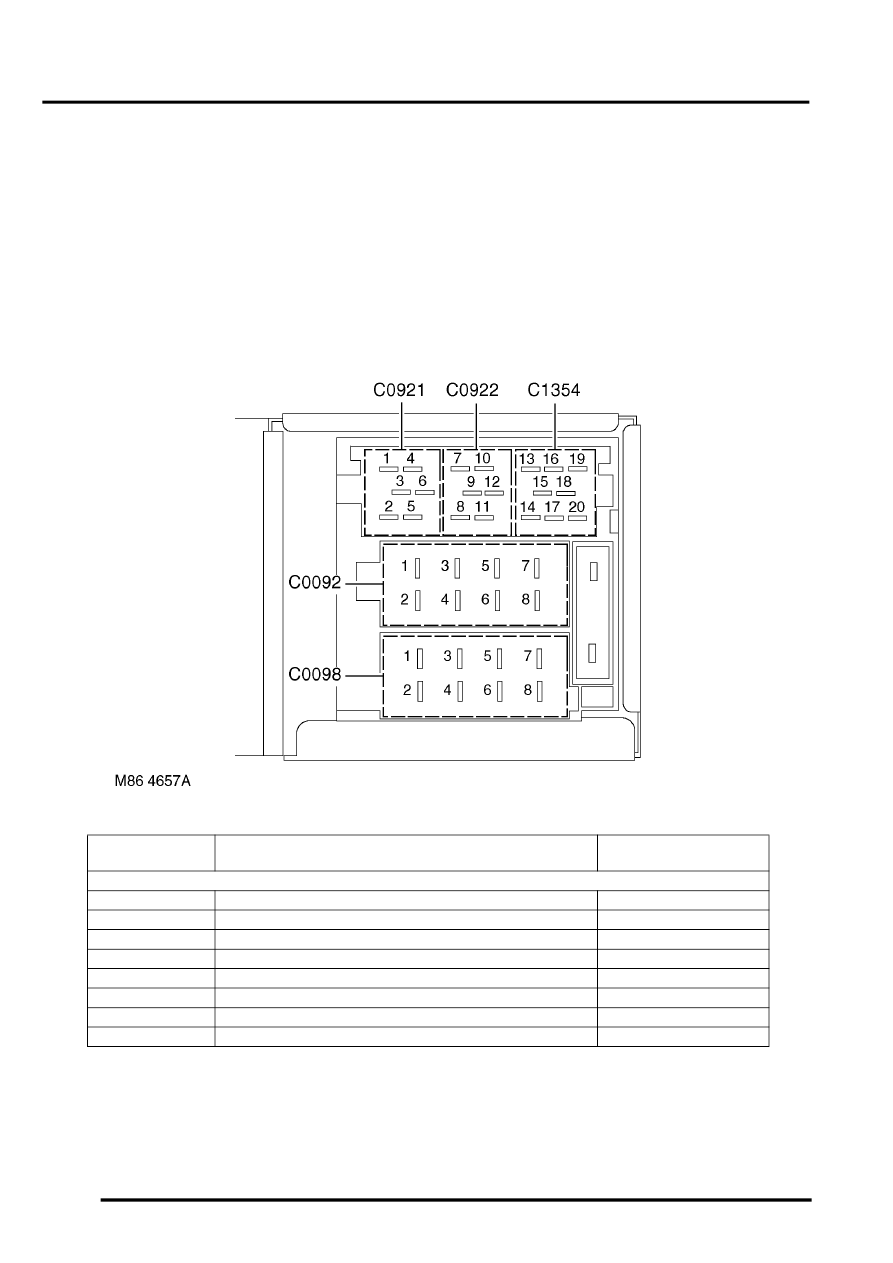

Radio cassette player connector pin details.
Connector/Pin
No.
Description
Input/Output
C0092
1
Rear RH speaker line
Output +
2
Rear RH speaker line
Output -
3
Front RH speaker line
Output +
4
Front RH speaker line
Output -
5
Front LH speaker line
Output +
6
Front LH speaker line
Output -
7
Rear LH speaker line
Output +
8
Rear LH speaker line
Output -
