CATCH AND RETAINER - HARD-BACK - FRONT

Service repair no - 76.61.94

Remove

  1. Remove hard-back. See Owner’s Handbook.
Catch and retainer - hard-back - front – Remove hard-back. See Owner’s Handbook.

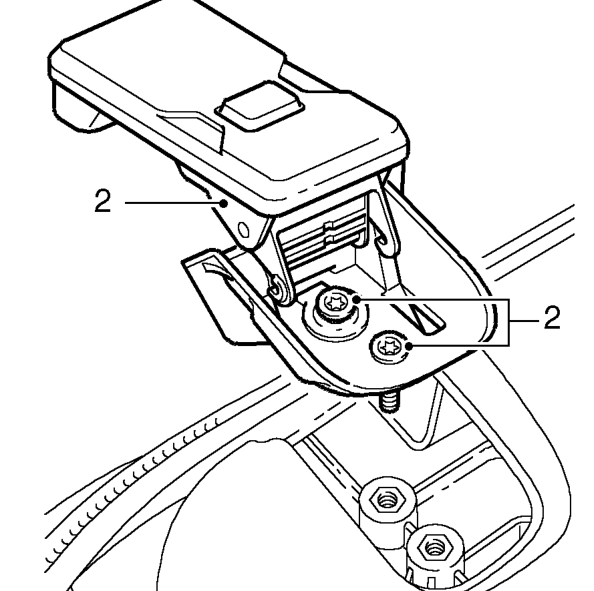

  1. Remove 2 Torx screws securing catch, slide catch from position and remove catch.
Catch and retainer - hard-back - front – Remove 2 Torx screws securing catch, slide catch from position and remove catch.

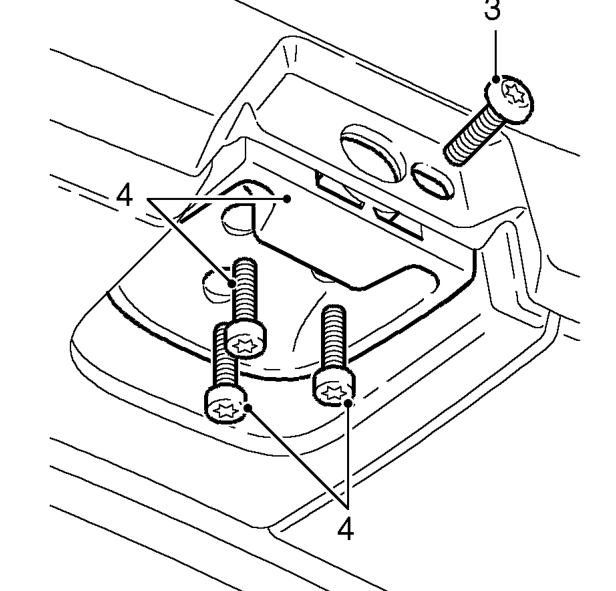

  1. Remove Torx screw securing roof finisher to hard-back retainer.
  2. Remove 3 Torx screws securing hard-back retainer and remove retainer.

Refit

  1. Position hard-back retainer, fit Torx screws and tighten to 10Nm.
  2. Fit Torx screw securing roof finisher.
  3. Position catch, fit Torx screws and tighten to 10 Nm.

CAUTION: Ensure formed washer is correctly located in catch recess.

  1. Fit hard-back. See Owner’s Handbook.
