CATCH AND RETAINER - HARD-BACK - REAR

Service repair no - 76.61.95

Remove

  1. Remove hard-back or soft-back. See Owner’s Handbook.
Catch and retainer - hard-back - rear – Remove hard-back or soft-back. See Owner’s Handbook.

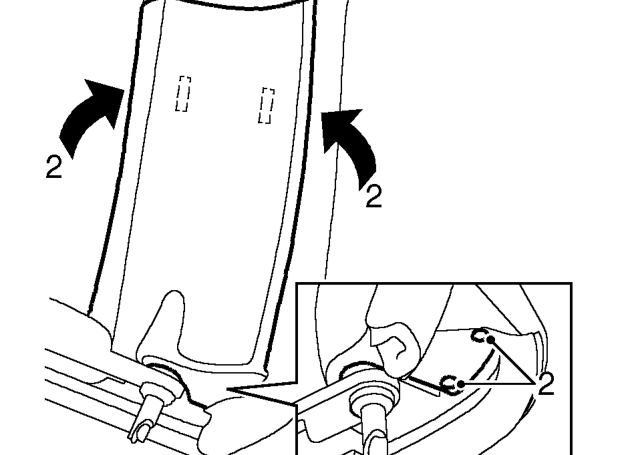

  1. Remove 2 screws securing ’E’ post finisher, release finisher from 2 clips and remove finisher.
Catch and retainer - hard-back - rear – Remove 2 screws securing ’E’ post finisher, release finisher from 2 clips and remove finis

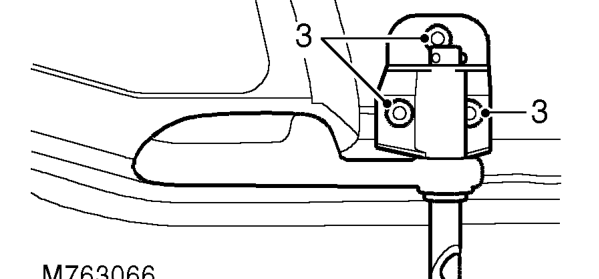

  1. Remove 3 Torx screws securing catch and remove catch.
  2. Remove lower rear quarter trim casing. See Interior trim components.
Catch and retainer - hard-back - rear – Remove lower rear quarter trim casing. See Interior trim components.

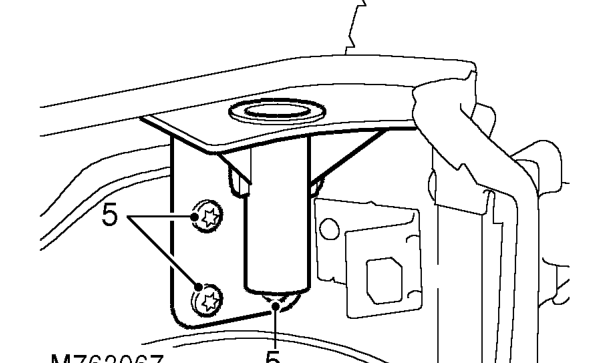

  1. Remove 3 Torx screws securing hard-back retainer and remove retainer.

Refit

  1. Position catch, fit Torx screws and tighten to 10Nm.
  2. Position ’E’ post finisher, engage in clips and secure with screws.
  3. Position hard-back retainer, fit Torx screws and tighten to 10 Nm.
  4. Fit lower rear quarter trim casing. See Interior trim components.
  5. Fit hard-back. See Owner’s Handbook.
