Hood outer cover

HOOD OUTER COVER

Service repair no - 76.61.11

Remove

CAUTION: Always position trim components on a soft covered, clean work surface.

NOTE: Where necessary, transfer witness marks from the old cover to aid assembly. New outer covers are supplied complete with the header rail.

NOTE: The following operation involves the bonding of fabric backed vinyl. If adhesive is to be applied to the fabric backing, Dunlop 758 adhesive or equivalant should be used. For direct application on vinyl surfaces, use Dunlop S1588 adhesive or equivalant. A thin coating of adhesive should be applied to both surfaces and then allowed to cure, until touch dry, for between 5 and 10 mins before bond is made.

1. Remove hood assembly. See Owner’s Handbook.

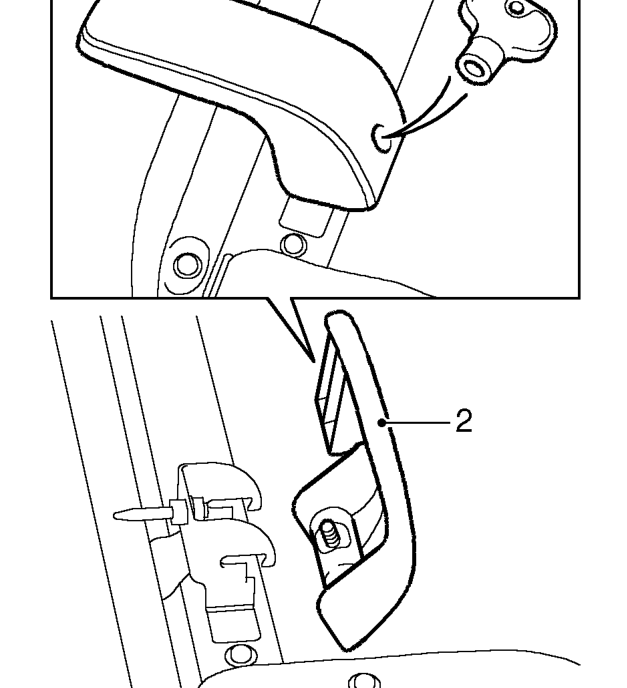

2. Loosen catch screws with special key, release catches from hood and remove both catches.
