Land Rover Freelander Workshop Manual (1998-2000)24 · Body
24 · Body & interior

Seal - hard back - primary

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Hood › Seal - hard back - primary
BodySeal - hard back - primary

SEAL - HARD BACK - PRIMARY

Service repair no - 76.61.34

CAUTION: Always position trim components on a soft covered, clean work surface.

Remove

  1. Remove hard back. See Owner’s Handbook.

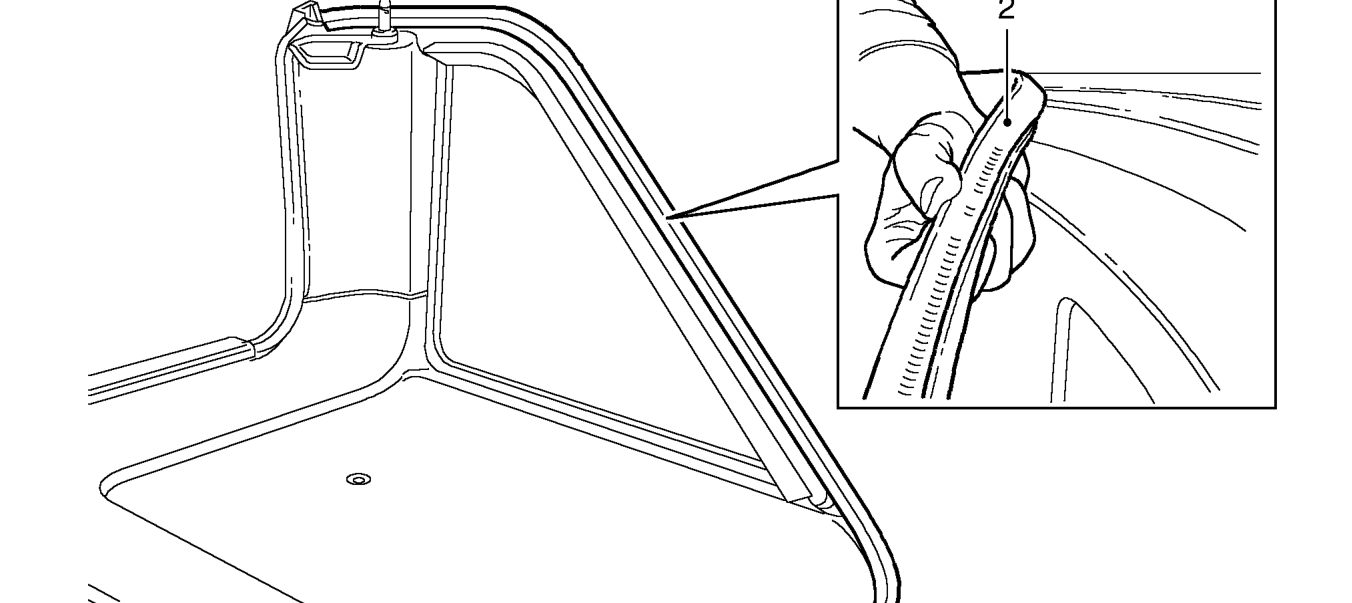

Seal - hard back - primary – Remove hard back. See Owner’s Handbook.
  1. Release seal from flange around hard back frame and remove seal.

Refit

  1. Clean seal flange.
  2. Position seal and secure to flange.
  3. Secure ends of seal to hard-back frame using Butyl Rubber adhesive if necessary.
  4. Fit hard back. See Owner’s Handbook.
