GLASS - BODY SIDE - HARD BACK

Service repair no - 76.61.29

CAUTION: Always position trim components on a soft covered, clean work surface.

WARNING: Wear protective gloves when handling glass, solvents and primers.

WARNING: Wear suitable eye protection when removing and refitting glass.

NOTE: The following equipment is required: • Cutting wire and handles • Sharp knife • Windscreen repair kit • Sealer applicator gun • Suction cups

Remove

  1. Remove hard-back. See Owner’s Handbook.

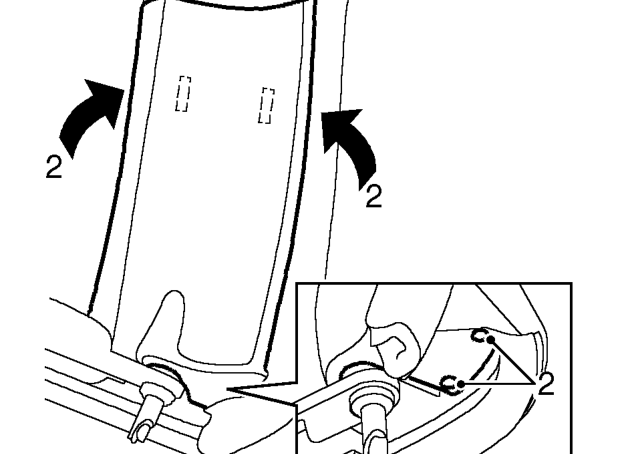

Glass - body side - hard back – Remove hard-back. See Owner’s Handbook.
  1. Remove 2 screws securing ’E’ post finisher, release finisher from clips and remove finisher.

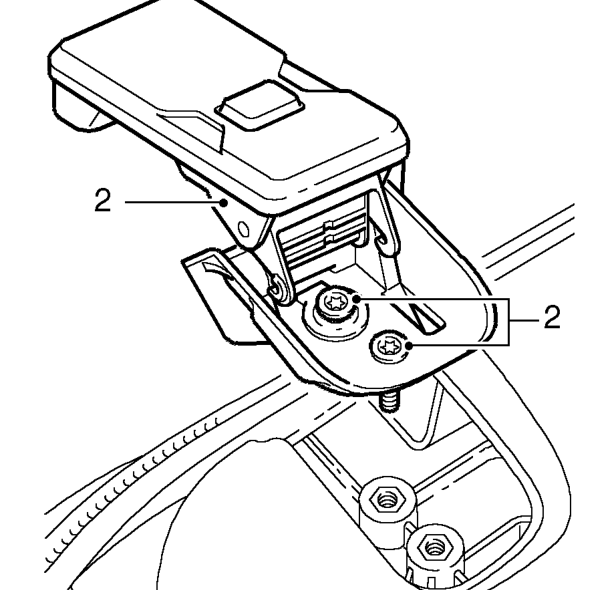

Glass - body side - hard back – Remove 2 screws securing ’E’ post finisher, release finisher from clips and remove finishe
  1. Remove 4 Torx screws securing hard-back catches, slide catches from position and remove catches.

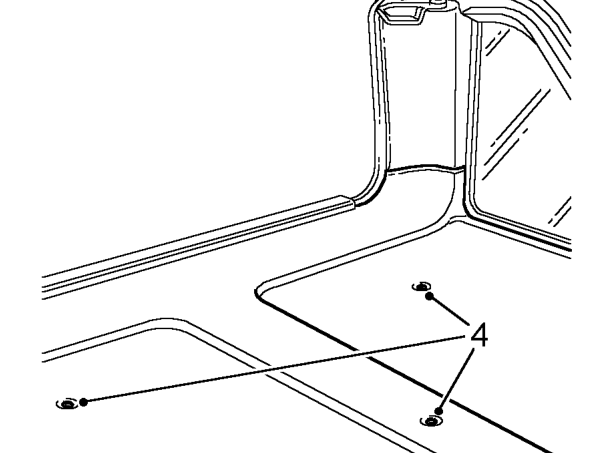

Glass - body side - hard back – Remove 4 Torx screws securing hard-back catches, slide catches from position and remove ca
  1. Remove 3 Torx screws securing headlining release headlining from hard-back seal and remove headlining.
  2. Cover interior of hard-back with protective sheet.
  3. Apply masking tape to protect paintwork.
