Hood outer cover (page 2 of 2)

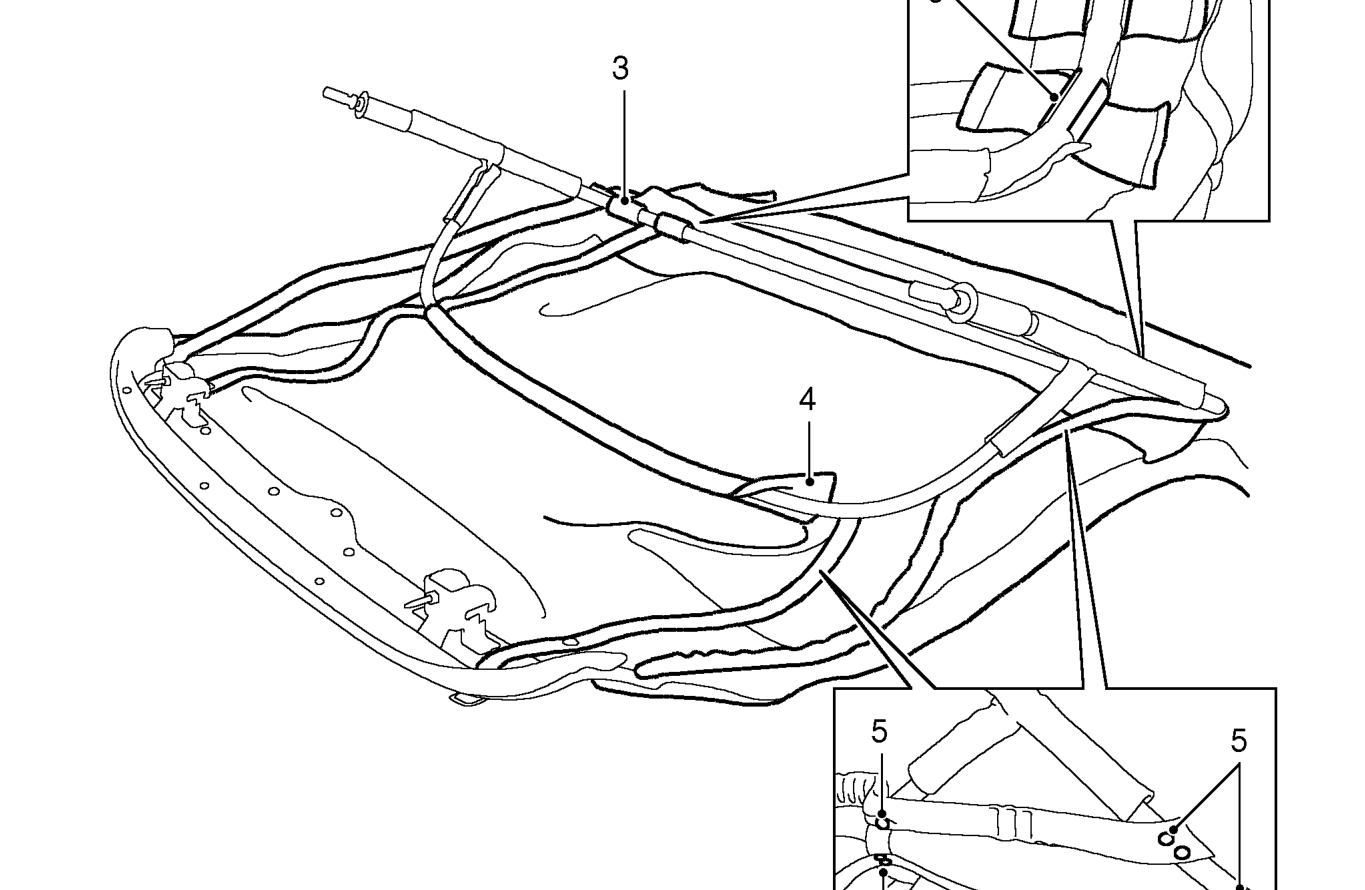

3. Release fabric flaps from rear of frame.
4. Release fabric flap from front of frame.
5. Remove 14 screws securing tension straps
6. Release frame from outer cover retainers.
7. Remove frame from outer cover.

Refit

1. Clean excess adhesive from frame using a suitable solvent.
2. Position frame to hood outer cover and locate in retainers.
3. Position tension straps and secure with screws.
4. Apply adhesive to fabric flap and secure to front of frame.
5. Apply adhesive to fabric flaps and secure to rear of frame.

CAUTION: Ensure adhesive does not contact frame.

NOTE: The fabric flaps should be free to move on the frame.

6. Fit hood catches and secure with special key.
7. Fit soft back assembly. See Owner’s Handbook.
