Drive cables & slide assemblies

DRIVE CABLES & SLIDE ASSEMBLIES

Service repair no - 76.84.09

Remove

1. Remove sun roof motor. See this section.
2. Remove glass panel. See this section.
3. Open sun roof.
4. Release and remove wind deflector.
5. Position sun roof in tilt mode.

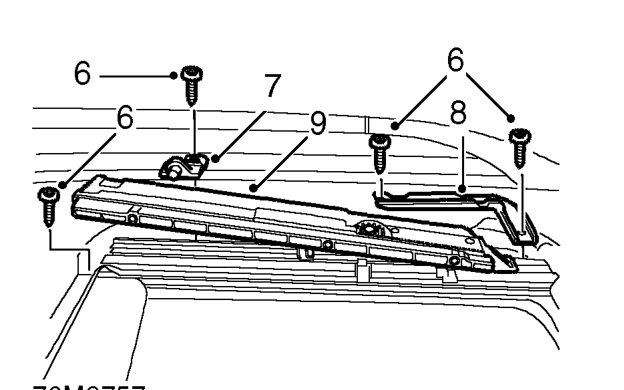

6. Remove 4 Torx screws securing lifting assembly to roof.
7. Collect rear cam guide.
8. Slide assembly forward, remove cable guide clamp.
9. Remove lifting assembly and cable.

Refit

1. Ensure cable tubes are in position, lightly grease the end of cable tube.
2. Engage cable in tube and fit lifting assembly to roof.
3. Fit cable guide clamp, place lifting assembly in tilt mode.
4. Fit rear cam guide.
5. Fit and tighten Torx screws.
6. Fit sun roof motor. See this section.
7. Open sun roof.
8. Position wind deflector and secure to sun roof.
9. Fit glass panel. See this section.
