Seal - panel glass - sun roof - 5 door

SEAL - PANEL GLASS - SUN ROOF - 5 DOOR

Service repair no - 76.84.05

Remove

1. Remove glass panel. See this section.

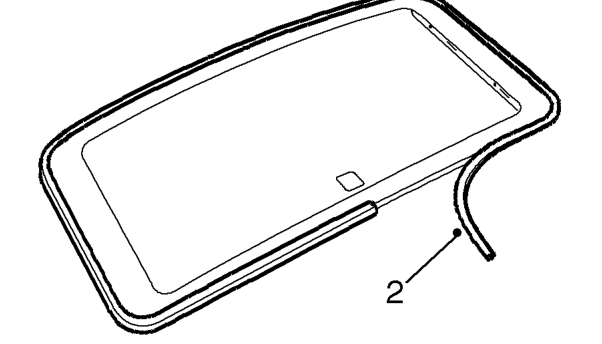

2. Release ends of seal from glass and remove seal .

Refit

1. Clean adhesive from glass.
2. Position seal; apply adhesive to ends of seal and secure to glass panel.
3. Fit glass panel. See this section.

MOTOR - SUN ROOF

Service repair no - 76.84.07

Remove

1. Remove front roof lamp. See ELECTRICAL, Repairs.
2. Remove headlining to sun roof finisher. See Repairs.
3. Carefully lower front of headlining to access motor.

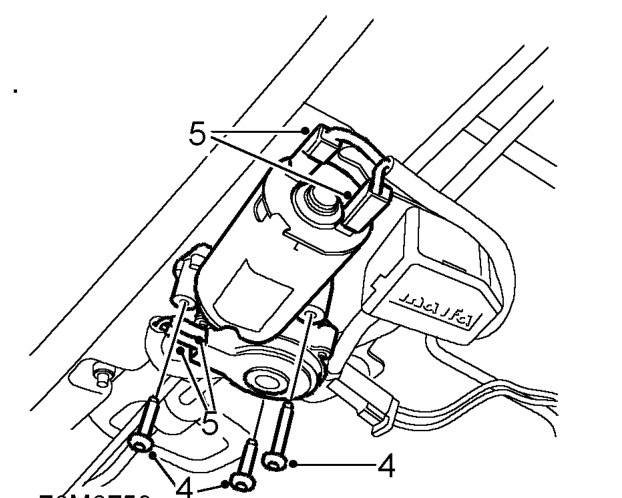

4. Remove 3 Torx screws securing motor.
5. Release motor from gearbox, lower through headlining, disconnect 4 Lucars and remove motor.

Refit

1. Position motor, connect Lucars and fit motor to gearbox.
2. Position sun roof in tilt mode, power motor forward to the first stop (motor and lifting assemblies are then timed together).
3. Fit and tighten Torx screws.
4. Carefully reposition headlining.
5. Fit sun roof finisher. See Repairs.
6. Fit roof lamp. See ELECTRICAL, Repairs.
