BodyDrain tube - sun roof - front - 5 door

DRAIN TUBE - SUN ROOF - FRONT - 5 DOOR

Service repair no - 76.84.20

Remove

  1. Remove headlining. See Interior trim components.

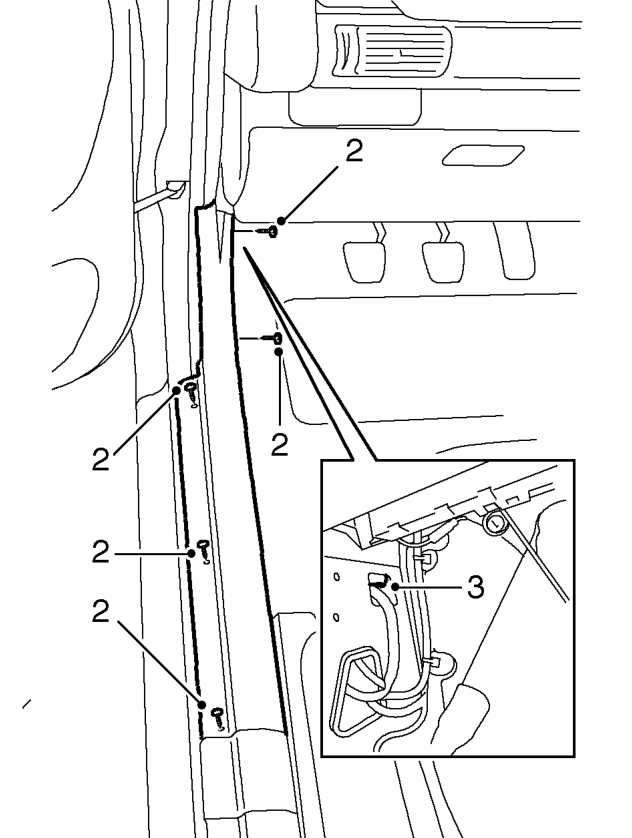

Drain tube - sun roof - front - 5 door – Remove headlining. See Interior trim components.
  1. Remove 5 Torx screws securing carpet retainer and remove retainer.
  2. Release drain tube from wheel arch grommet.

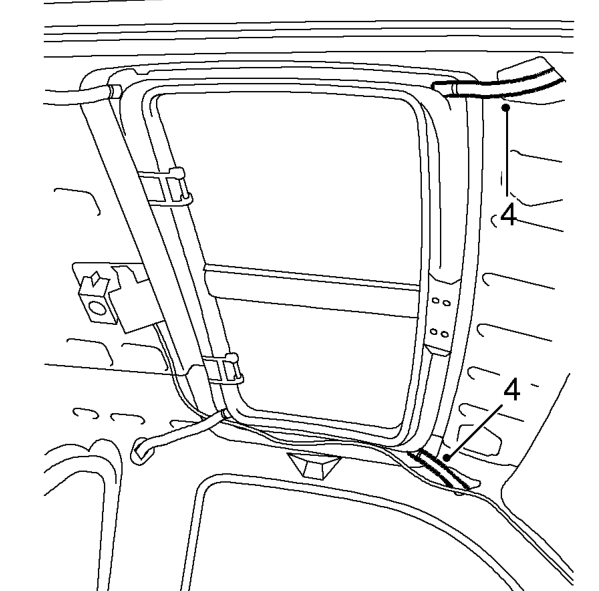

Drain tube - sun roof - front - 5 door – Release drain tube from wheel arch grommet.
  1. Disconnect drain tube from sun roof, discard cable tie.
  2. Attach draw string and remove drain tube.

Refit

  1. Attach draw string to NEW drain tube and pull into position.
  2. Connect drain tube to sun roof and secure with NEW cable tie.
  3. Connect drain tube to wheel arch grommet.
  4. Secure wheel arch grommet.
  5. Position carpet retainer, fit and tighten Torx screws.
  6. Fit headlining. See Interior trim components.
