GAITER - INNER - FRONT

Service repair no - 47.10.16

Remove

  1. Remove drive shaft. See this section.
  2. Remove outer drive shaft joint. See this section. Remove dynamic damper if fitted. See this section.

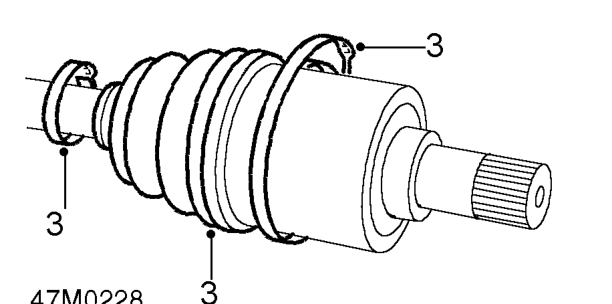

Gaiter - inner - front – Remove outer drive shaft joint. See this section. Remove dynamic damper if fitted. See thi
  1. Release both inner gaiter clips and discard. Remove gaiter from drive shaft.
  2. Inspect drive shaft gaiters and dynamic damper for damage and renew if necessary.

Refit

  1. Clean drive shaft and joint.
  2. Apply grease to joint.
  3. Position NEW gaiter to drive shaft and use a Band-it thriftool to secure the new clips.
  4. Fit dynamic damper if necessary. See this section. Fit outer drive shaft joint. See this section.
  5. Fit drive shaft. See this section.
