Gaiter - outer - rear

GAITER - OUTER - REAR

Service repair no - 47.11.03

1. Remove drive shaft. See this section.
2. Remove drive shaft outer joint. See this section.

3. Remove and discard circlip.

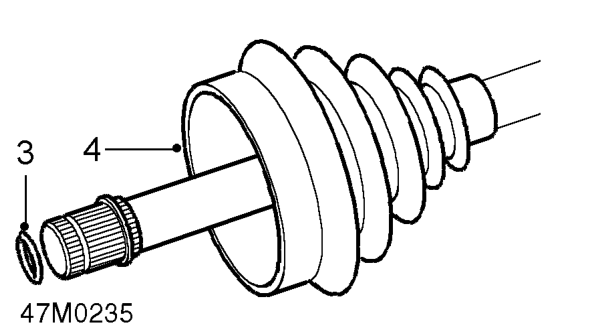

4. Remove outer gaiter.

Refit

1. Clean drive shaft end and outer gaiter, fit gaiter.
2. Fit drive shaft outer joint. See this section.
3. Fit drive shaft. See this section.

JOINT - OUTER - REAR

Service repair no - 47.11.04

Remove

1. Remove drive shaft. See this section.
2. Place drive shaft in vice.
3. Release and discard both gaiter clips.

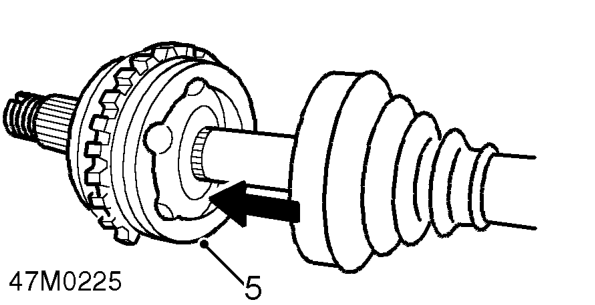

4. Slide gaiter along shaft to gain access to outer joint.

5. Using a suitable drift against the inner part of the joint remove the joint.
6. Remove and discard circlip.

Refit

1. Fit NEW circlip to shaft.
2. Position outer joint to shaft. use a screwdriver to press circlip into its groove and push joint fully onto shaft.
3. Apply grease from sachet to the joint.
4. Position gaiter to joint and use a Band-it thriftool LRT-99-019 to secure the 2 NEW clips.
5. Fit drive shaft. See this section.
