Component handling

Component handling

WARNING: The SRS components are sensitive and potentially hazardous if not handled correctly; always comply with the following handling precautions:

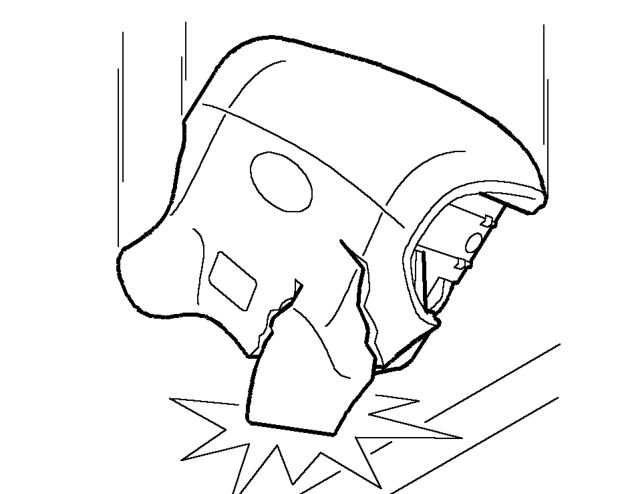

• Never drop an SRS component. The airbag diagnostic control unit is a particularly shock sensitive device and must be handled with extreme care. Airbag modules and seat belt pre-tensioner units could deploy if subjected to a strong shock. • Never wrap your arms around an airbag module. If an airbag module has to be carried, hold it by the cover, with the cover uppermost and the base away from your body. • Never transport airbag modules or seat belt pre-tensioners in the cabin of a vehicle. Always use the luggage compartment of the vehicle for carrying airbag modules and seat belt pre-tensioner units.

Storage

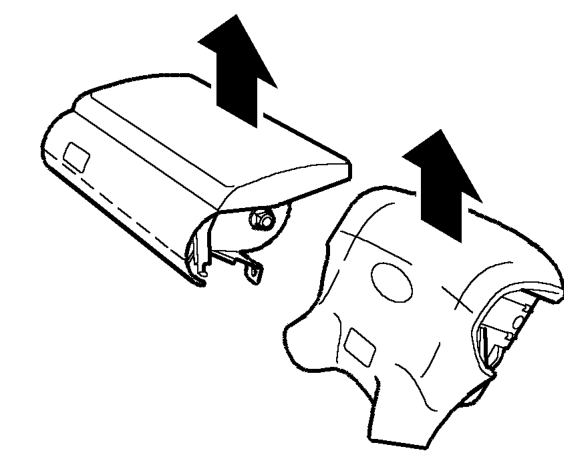

WARNING: Always store airbag modules with the cover face up. If the airbag module is stored face down, accidental deployment could propel the unit with enough force to cause serious injury.

WARNING: Airbag modules and seat belt pre-tensioners are classed as explosive devices. For overnight and longer term storage, they must be stored in a secure steel cabinet which has been approved as suitable for the purpose and has been registered by the local authority.

CAUTION: For the temporary storage of an airbag module or seat belt pre-tensioner during service, place in a designated storage area. If there is no designated storage area available, store in the luggage compartment of the vehicle and inform the workshop supervisor.

CAUTION: Always observe the following precautions when temporarily storing an airbag module: • Ensure the cover is facing upwards and the luggage compartment is secured. • Always keep components cool, dry and free from contamination. • Do not allow anything to rest on the airbag module. • Store any removed airbag assembly on a secure flat surface away from electrical equipment and heat sources (exceeding 85°C (185°F).
