Deployment of passenger airbag module

WARNING:

  • Only use the approved deployment equipment.
  • Deploy airbag modules in a well ventilated designated area.
  • Ensure airbag module is not damaged or ruptured before deploying.
  • Notify relevant authorities.
  1. Release passenger airbag module from fascia. See BODY, Repairs.
  2. Connect SMD 4082/4 to passenger airbag module.
  3. Refit passenger airbag module, ensuring that SMD 4082/4 is routed to accessible area beneath fascia.
  4. Tighten passenger airbag fixings to 9Nm.
  5. Carry out deployment tool self test. See SRS Precautions.

WARNING: Ensure tool SMD 4082/1 is not connected to battery.

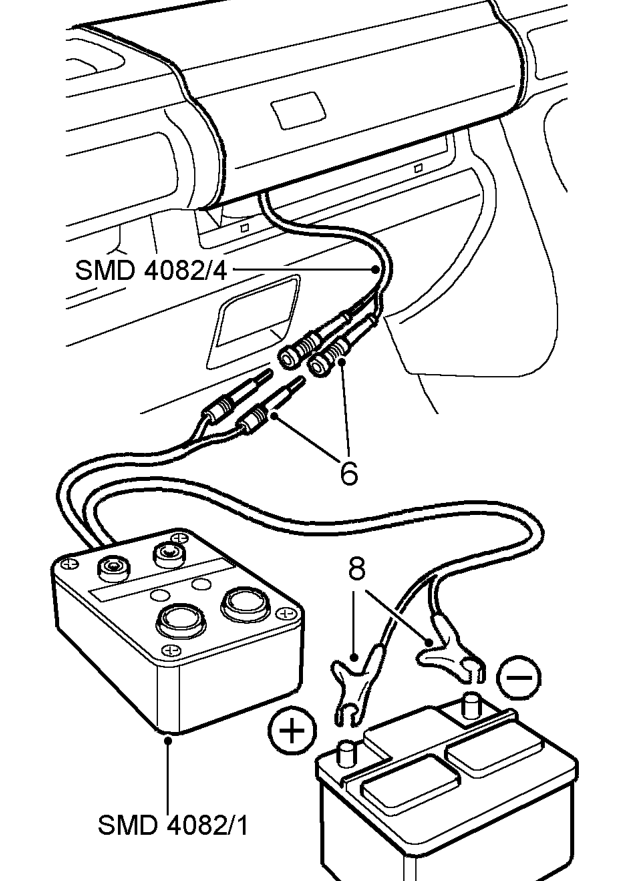

Deployment of passenger airbag module – Carry out deployment tool self test. See SRS Precautions.

WARNING: Do not lean over airbag module whilst connecting.

  1. Connect flylead SMD 4082/4 to tool SMD 4082/1.
  2. Ensure all vehicle doors are open.
