Component replacement policy

WARNING: Ensure all personnel are standing at least 15 metres away from vehicle.

8. Connect tool SMD 4082/1 to battery.

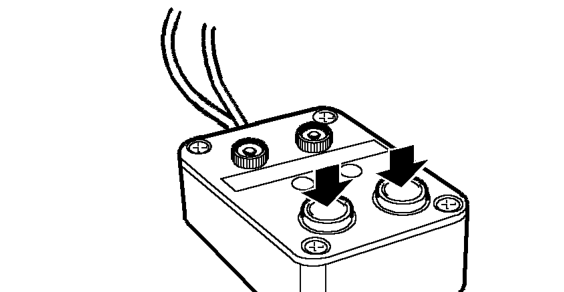

9. Press both operating buttons to deploy airbag module.
10. DO NOT return to vehicle for 30 minutes.
11. Wearing gloves and face mask, release passenger airbag module and disconnect SMD 4082/4 . Remove airbag module from vehicle. Place airbag module in plastic bag and seal bag.
12. Transport deployed airbag module to designated area for incineration.

NOTE: DO NOT transport airbag module in the vehicle passenger compartment.

13. If the vehicle is being scrapped, scrap all remaining parts of airbag system. DO NOT re-use or salvage any parts of the airbag system.

CAUTION: If vehicle is not being scrapped, ensure all dust/particle by-products of airbag deployment are removed from vehicle interior; vacuum all fabric surfaces and wipe all other surfaces with damp cloth.

COMPONENT REPLACEMENT POLICY

IMPACTS WHICH DO NOT DEPLOY AIRBAGS

CAUTION: Check for structural damage in the area of the impact, paying particular attention to bumper armatures, longitudinals, crash cans and bracketry.

IMPACTS WHICH DEPLOY AIRBAGS

CAUTION: Renew the following components:

• Airbag ECU.
• Airbag module(s).
• SRS Wiring.
• Pretensioners.
• Rotary coupler.
