Freelander System Description and Operation
HEATING AND VENTILATION
DESCRIPTION AND OPERATION
80-7

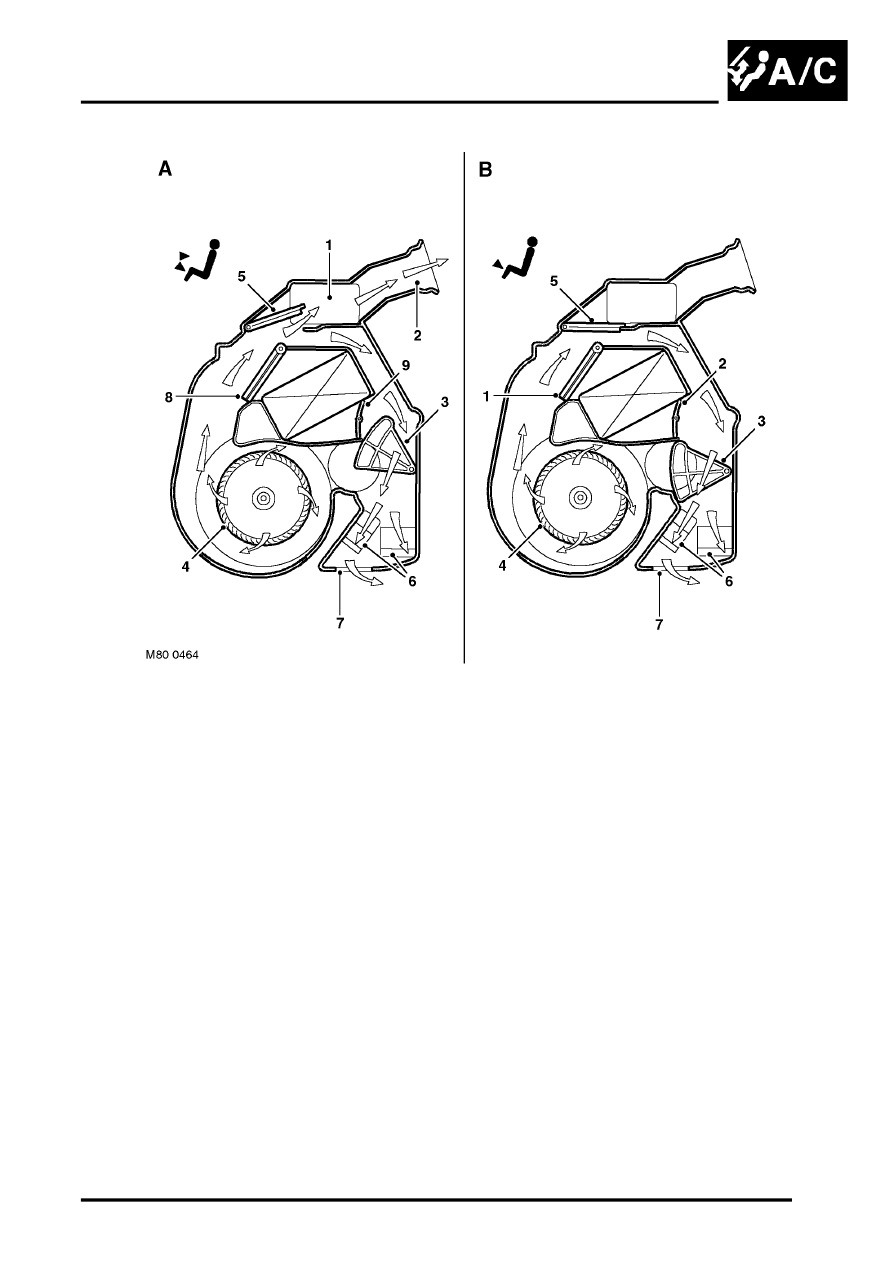

A Face Level and Footwells Distribution
Control
1 Outer face level air outlet
2 Centre face level air outlet
3 Distribution main flap
4 Blower
5 Distribution fresh air flap
6 Front footwell air outlets
7 Rear footwells air outlet
8 Temperature control flap
9 Heater matrix 'close-off' flap
B Footwells Distribution Control
1 Temperature control flap
2 Heater matrix 'close-off' flap
3 Distribution main flap
4 Blower
5 Distribution fresh air flap
6 Front footwell air outlets
7 Rear footwells air outlet
