FINISHER - SEAT BASE - FRONT SEAT

Service repair no - 78.55.01

Remove

  1. Remove front seat cushion side finisher. See this section.
Finisher - seat base - front seat – Remove front seat cushion side finisher. See this section.

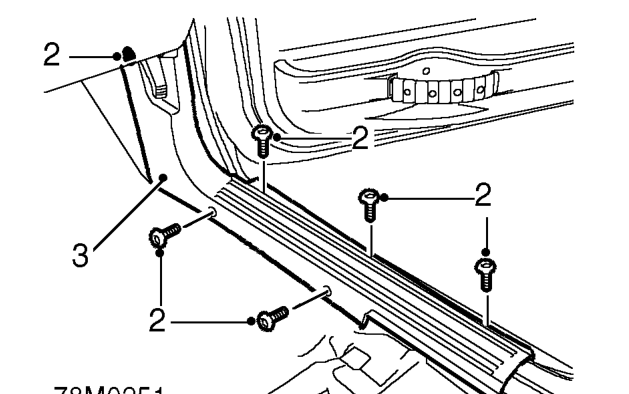

  1. Remove scrivet and 5 Torx screws from carpet retainer.
  2. Remove front carpet retainer.
Finisher - seat base - front seat – Remove front carpet retainer.

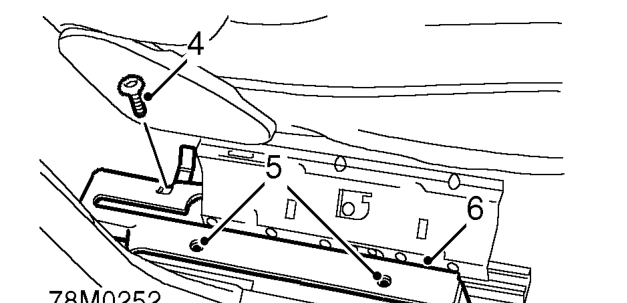

  1. Release cover to access Torx screw under front seat, remove Torx screw.
  2. Remove 2 Torx screws securing finisher to seat runner.
  3. Remove finisher.

Refit

  1. Position finisher to seat runner.
  2. Fit and tighten Torx screws.
  3. Fit and tighten Torx screw under front seat and close cover.
  4. Fit front carpet retainer and secure with scrivet and Torx screws.
  5. Fit front seat cushion side finisher. See this section.
