SEAT - RH REAR - 5 DOOR

Service repair no - 78.10.49/99

Remove

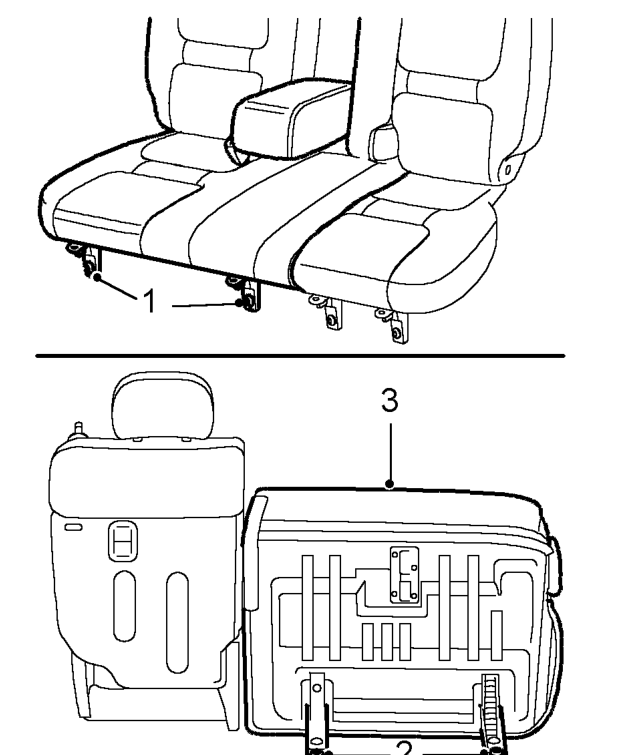

1. Release carpet from heel board and remove 2 Torx bolts from seat hinges.
2. Fold seat forward and remove 2 Torx bolts from seat hinges.
3. Remove seat.

Refit

1. Position seat in vehicle and align hinges.
2. Fit Torx bolts to seat hinges. Tighten Torx bolts to 25 Nm..
3. Lower seat.
4. Fit Torx bolts to heel board. Tighten Torx bolts to 25 Nm..
5. Reposition carpet.
