CUSHION COVER - FRONT SEAT

Service repair no - 78.30.01

Remove

  1. Remove front seat. See this section.
Cushion cover - front seat – Remove front seat. See this section.

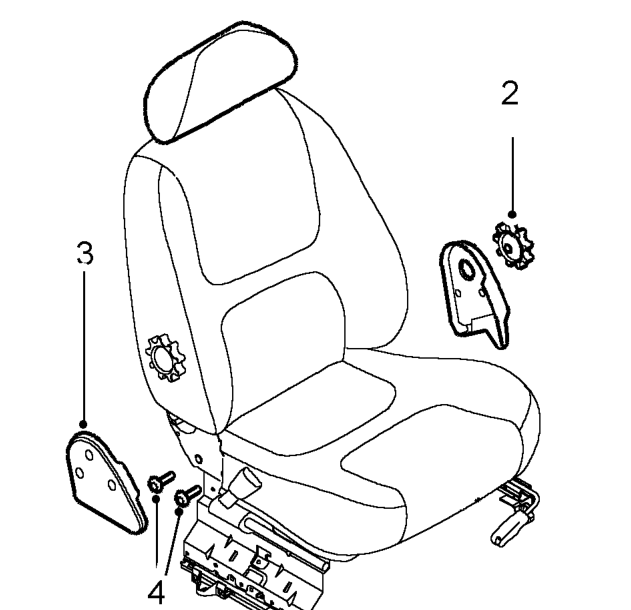

  1. Remove recline control knob.
  2. Release retaining studs from side covers and remove covers.
  3. Remove 4 Torx bolts from squab frame and remove squab frame from cushion frame.
Cushion cover - front seat – Remove 4 Torx bolts from squab frame and remove squab frame from cushion frame.

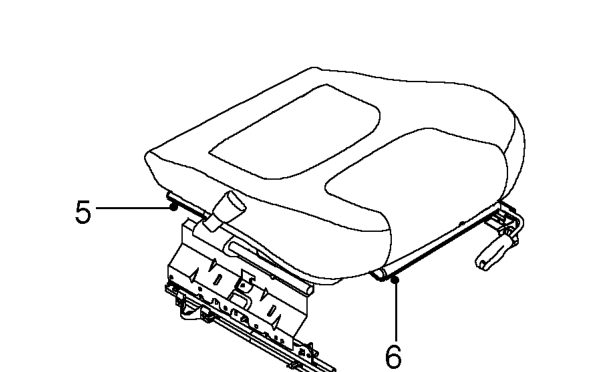

  1. Release sides of cushion cover from frame.
  2. Release front of cushion cover from frame.
Cushion cover - front seat – Release front of cushion cover from frame.

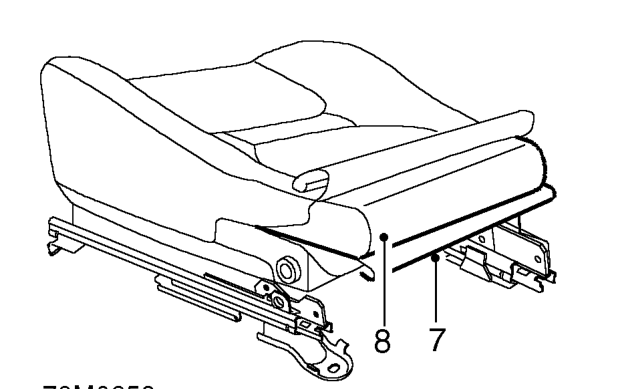

  1. Release rear of cushion cover from frame.
  2. Release rear of cushion pad from frame.
  3. Remove cushion cover and pad.
