Cushion cover - front seat (page 2 of 2)

Make

Land Rover

Model

Freelander Body Repair Manual

Year

1998 on

Section

Seats and seat belts

BodyCushion cover - front seat · page 2 of 2

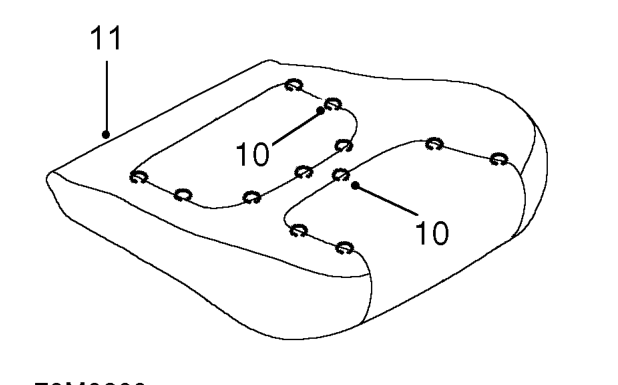

10. Remove and discard 12 hog rings holding cushion cover to cushion pad.
11. Remove cushion cover.

Refit

1. Position cushion cover to pad.
2. Pull cover into position and secure with NEW hog rings.
3. Position cushion cover and pad and secure to frame.
4. Fit squab frame to cushion frame and tighten Torx bolts to 45etorq>.
5. Fit side covers and secure retaining studs.
6. Fit recline control knob.
7. Fit front seat. See this section.
