Squab cover - rear seat - 3 door

Refit

1. Position squab cover to pad.
2. Pull cover into position and secure with NEW hog rings.
3. Fit squab cover and pad to frame.
4. Fit head restraint guide tubes.
5. Fit NEW hog rings to rear of cover.
6. Position straps and secure with pop rivets.
7. Fit squab cover to squab pad and squab frame.
8. Secure squab cover at base of squab frame.
9. Fit lumbar support control knob.
10. Fit squab frame to cushion frame and tighten Torx bolts.
11. Fit side covers and secure retaining studs.
12. Fit recline control knob.
13. Fit head restraint.
14. Fit front seat. See this section.

SQUAB COVER - REAR SEAT - 3 DOOR

Service repair no - 78.90.12

Remove

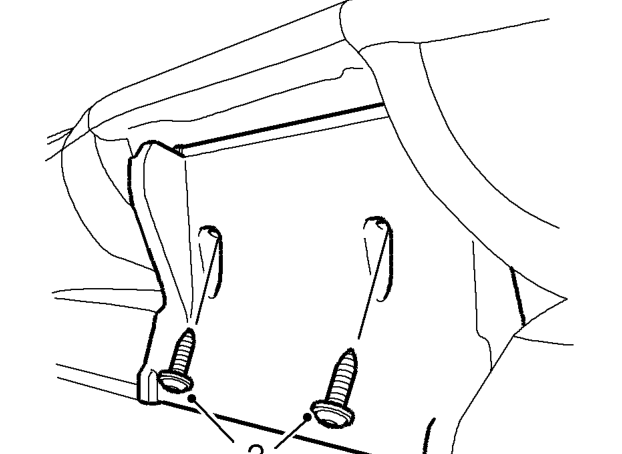

1. Remove rear seat assembly. See this section.

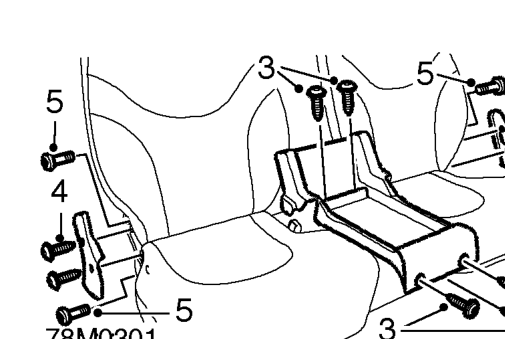

2. Remove 2 screws securing console cover and remove cover.

3. Remove 4 screws securing rear seat console and remove console.
4. Remove 4 screws securing end covers and remove covers.
5. Remove 4 Torx bolts and remove squab assembly from cushion assembly.
