L322 Range Rover Audio System Operation
ENTERTAINMENT AND INFORMATION SYSTEMS
86-8-34 DESCRIPTION AND OPERATION
MID Audio Operation
All of the functions of the MID Audio are controlled by the switches around the MID unit. Additional control is available
in the form of steering wheel mounted switches to alter the volume, change pre-set radio station, fast forward tape or
CD tracks.

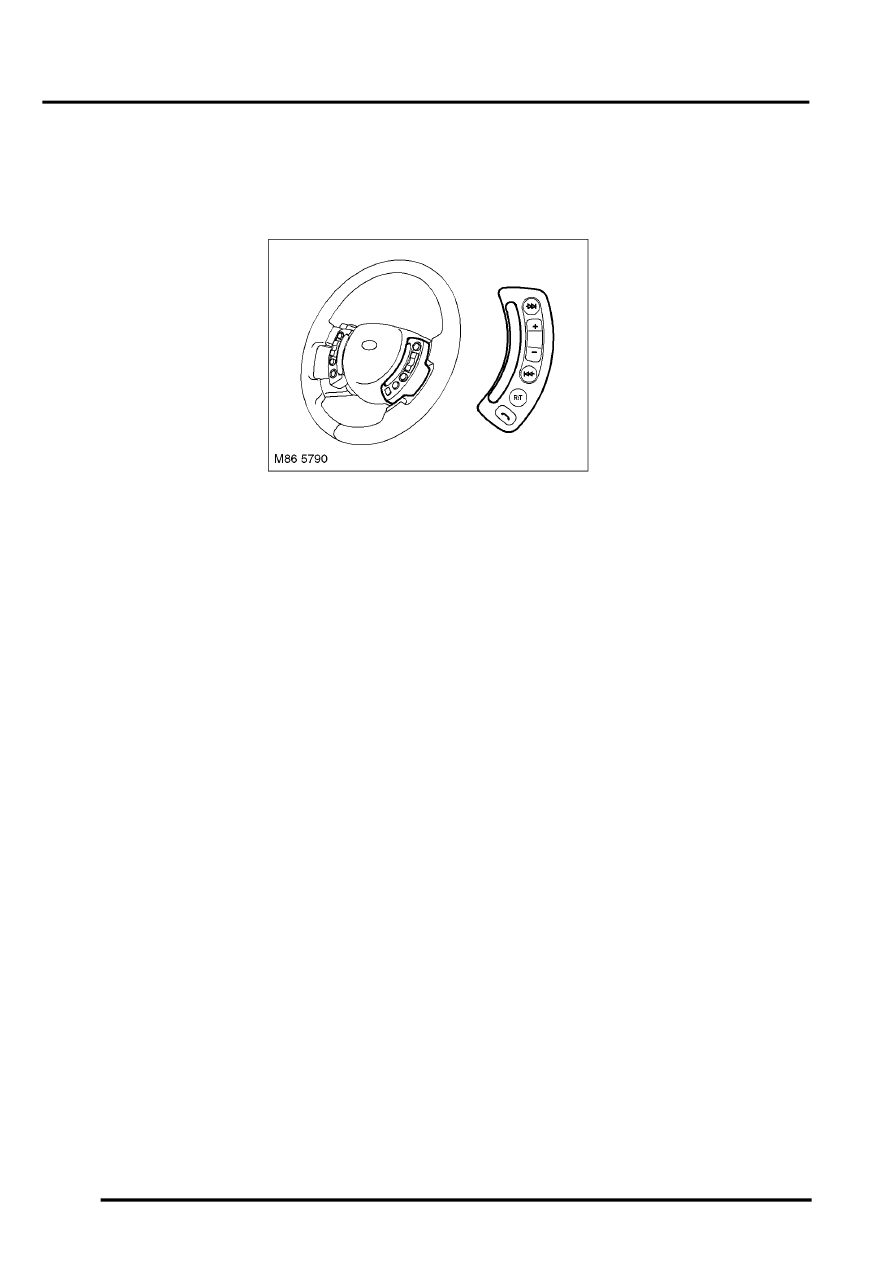

Steering Wheel Switches
Radio Operation
The radio is accessed by pressing the rotary controller on the MID. The radio can be tuned by pressing the arrow
buttons on the left of the MID (right arrow tunes up the scale left tunes down the scale). The 'M' button in the middle
of the arrow keys saves the tuned station to a memory.
Cassette Operation
The cassette is operated by inserting the tape into the tape slot. Once in the tape will start to play. The cassette player
is an auto-reverse tape player and will continue to play the tape from one side to the next until the tape is ejected or
the mode has changed to radio or CD player. To access a tape that is already in the cassette player from the radio or
CD autochanger press the button marked “Mode” on the far right hand side of the MID.
Functions that are available while in the cassette mode are:
l
Side
l
Dolby
l
SC
l
Mode.
Using the side option changes the tape from the current side being played to the other side of the tape.
Pressing the SC option changes the display to SC*, this activates the intro scan function. The cassette player will play
the introduction 10 seconds of each track on the tape. When the desired track is reached pressing this button again
will stop scanning the intros and start playing the tape from that point.
The cassette player also has the option to switch Dolby™ noise reduction from Dolby C to B or off by toggling the
switch labelled with Dolby in the MID.
The other functions (radio and CD player) are accessed by pressing the “Mode” button.
Mini Disc Operation
Once the Mini Disc (MD) is in the player, press the mode button to access the MD mode. The MID will display the
track number and the time. There is a slight delay between starting the player and the audio beginning as the player
has to read the audio data from the disc.
It is also possible to search for a specific track by pressing the direction key. A single press will advance the disc on
a track. Holding the button in fast forwards/rewinds through the current track. Releasing the key resumes playing the
track from that point.
The MD player has two special functions it can perform:
l
Track scan function
l
Random play function
