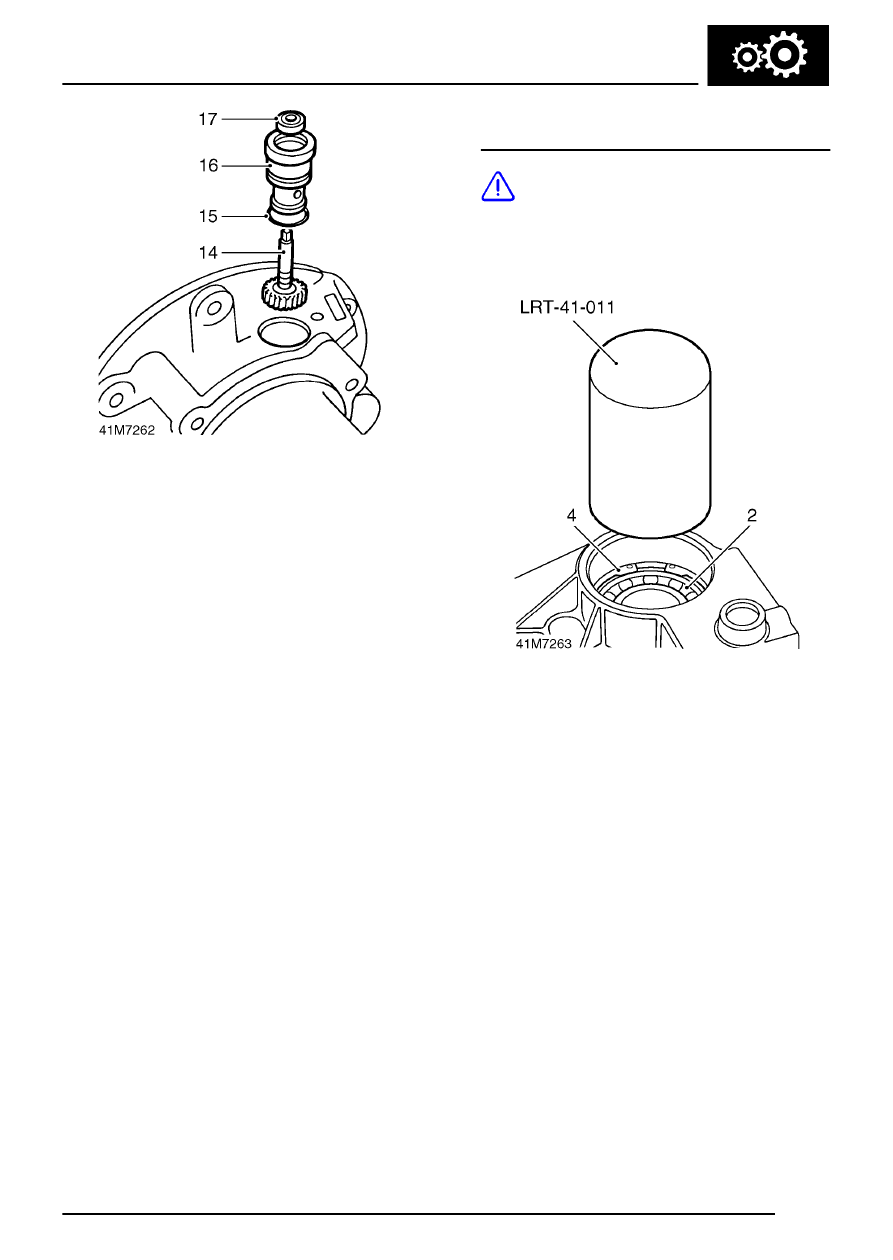

14. Fit speedometer driven gear into rear output
housing ensuring that gear teeth are engaged
with drive gear.
15. Lubricate a new ’O’ ring with recommended oil
and fit to driven gear housing.
16. Fit driven gear housing.
17. Lubricate a new oil seal with recommended oil,
fit seal with lip towards driven gear housing.
Front output housing
CAUTION: Do not carry out assembly
operations until differential bearing
pre-load has been determined
- See
differential bearing pre-load.
1. Heat front output housing to 100
°
C (210
°
F).
2. Fit new output shaft bearing using tool
LRT-41-011.
3. Allow housing to air cool.
4. Fit new bearing retaining circlip ensuring it is
fully seated in groove.
