LT230Q Transfer Box
TRANSFER BOX
OVERHAUL
33
Rear output housing
1. Heat rear output housing to 100
°
C (210
°
F).

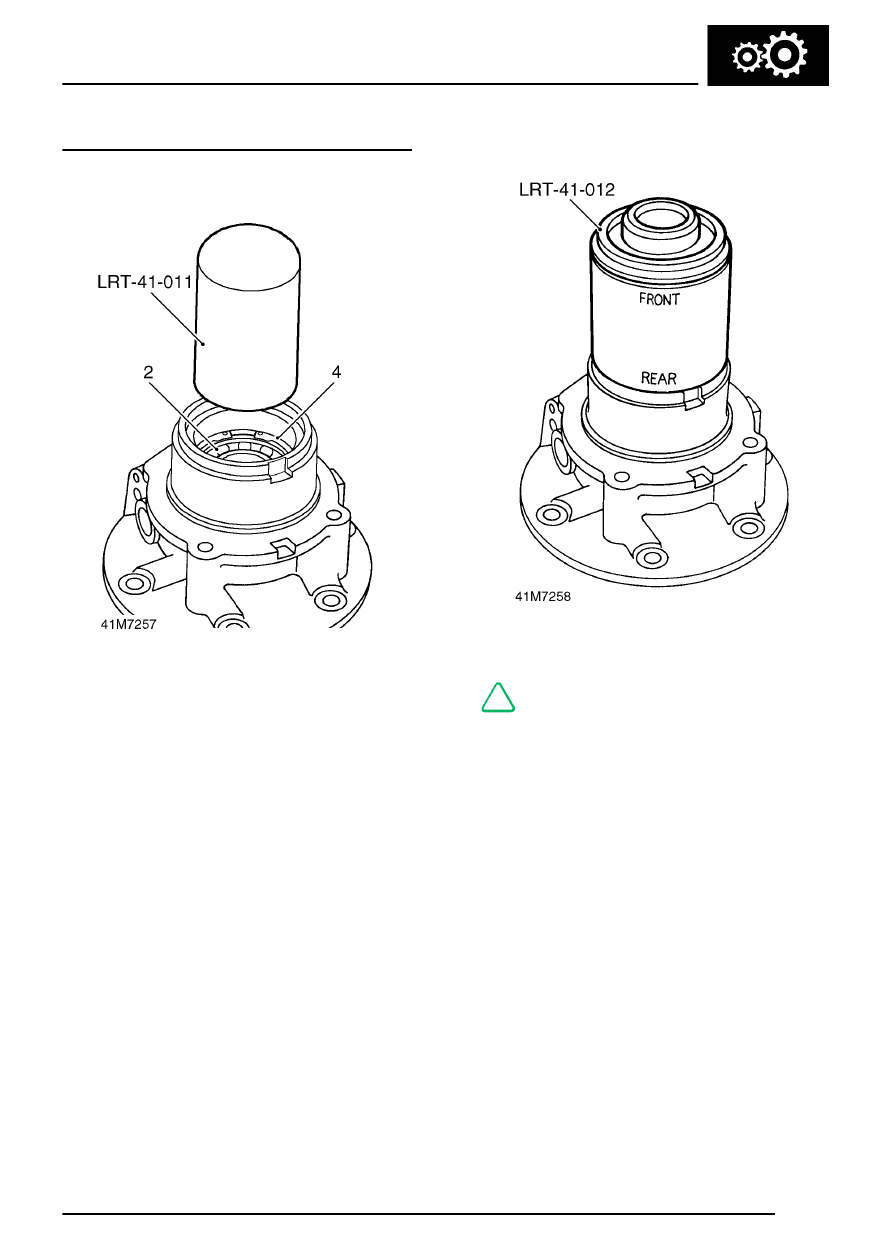

2. Fit new output shaft bearing using tool
LRT-41-011.
3. Allow housing to air cool.
4. Fit new bearing retaining circlip ensuring it is
seated in groove.
5. Lubricate a new output shaft oil seal with
recommended oil.
6. Fit oil seal using tool LRT-41-012.
NOTE: Use end of tool marked ’REAR’ to
fit oil seal.
7. Check that oil seal is just contacting circlip.
