Ground distribution – ground distribution (petrol)
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Ground distribution › Ground distribution – ground distribution (petrol)
‹ Prev Ground distribution – ground distribution (petrol)Next › Ground distribution – ground distribution (diesel)
Ground distributionGround distribution – ground distribution (petrol)

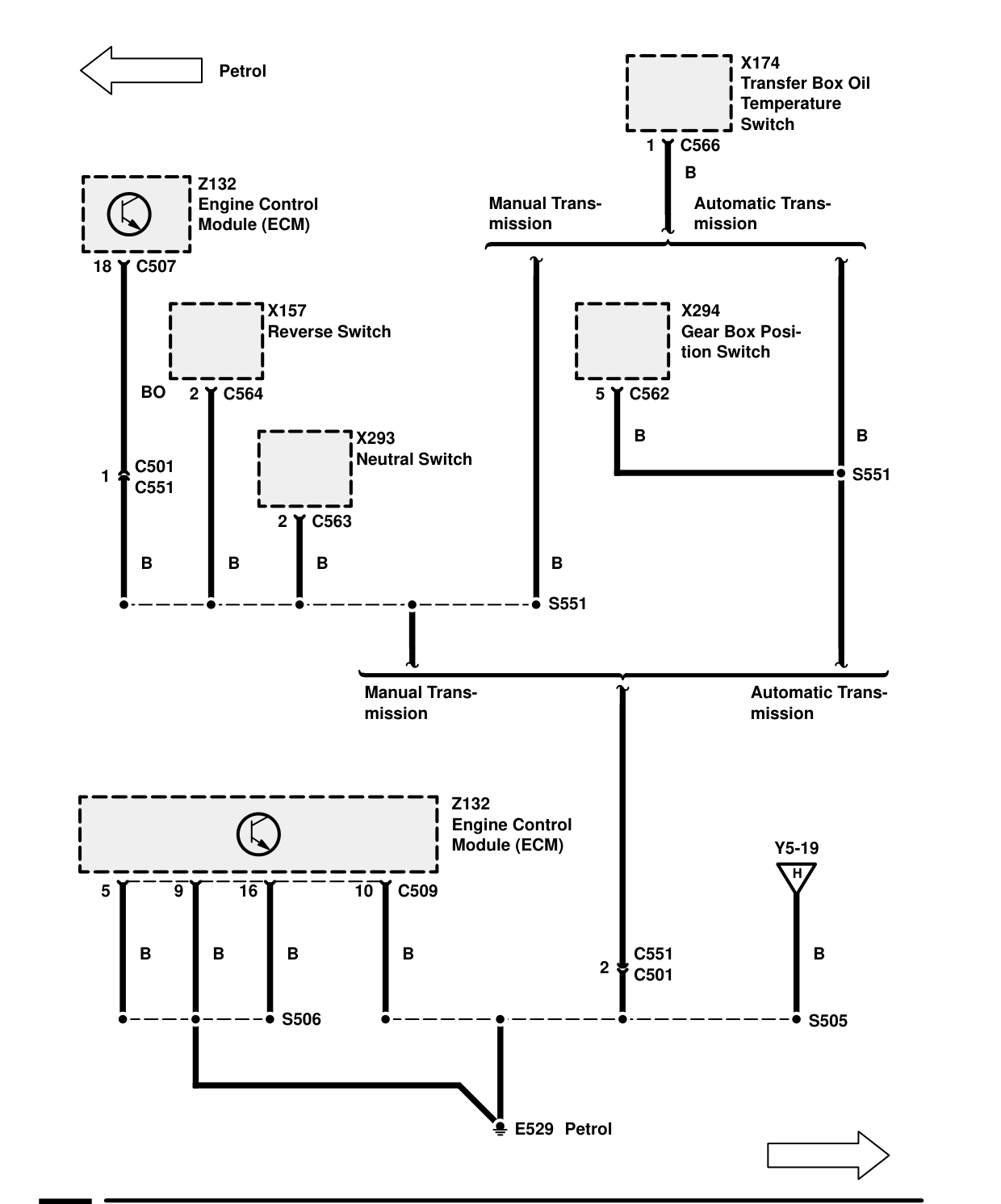

GROUND DISTRIBUTION – GROUND DISTRIBUTION (PETROL)
Components on this page
- E529 Petrol
- X157 Reverse Switch
- X174 Transfer Box Oil Temperature Switch C566 1
- X293 Neutral Switch
- X294 Gear Box Position Switch
- Z132 Engine Control Module (ECM)
