Land Rover Range Rover P38 Electrical Troubleshooting Manual (1995)25 · Interior lamps
25 · Body & interior

Interior lamps – circuit diagram

Make
Land Rover
Model
Range Rover P38 Electrical Troubleshooting Manual
Year
1995
Section
Circuit diagram › Interior lamps – circuit diagram
Interior lampsInterior lamps – circuit diagram

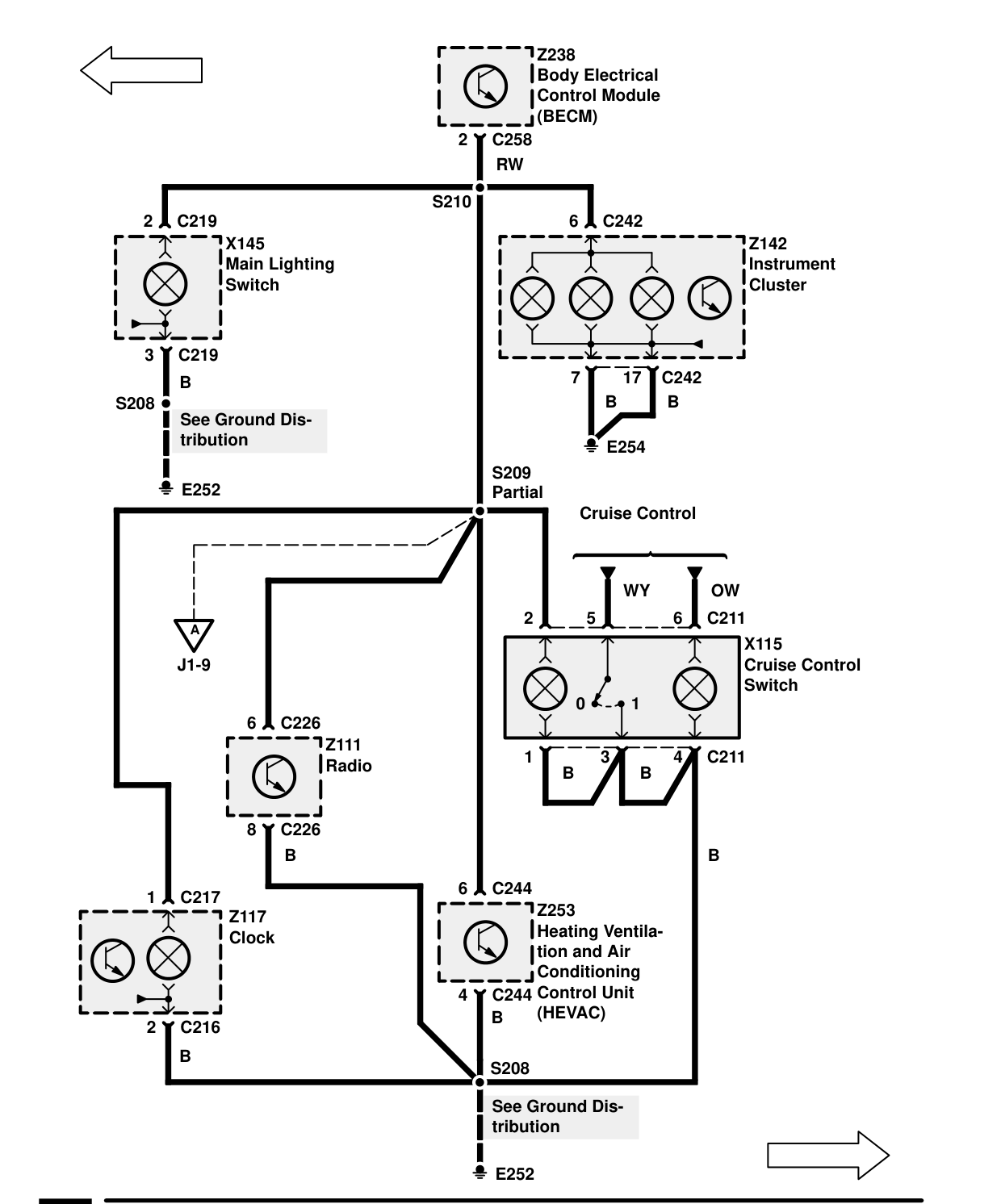

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps – Circuit Diagram

Components on this page

  • X115 Cruise Control Switch
  • X145 Main Lighting Switch
  • Z111 Radio
  • Z117 Clock
  • Z142 Instrument Cluster
  • Z238 Body Electrical Control Module (BECM) 2 C258
