RadioRadio – fault diagnosis

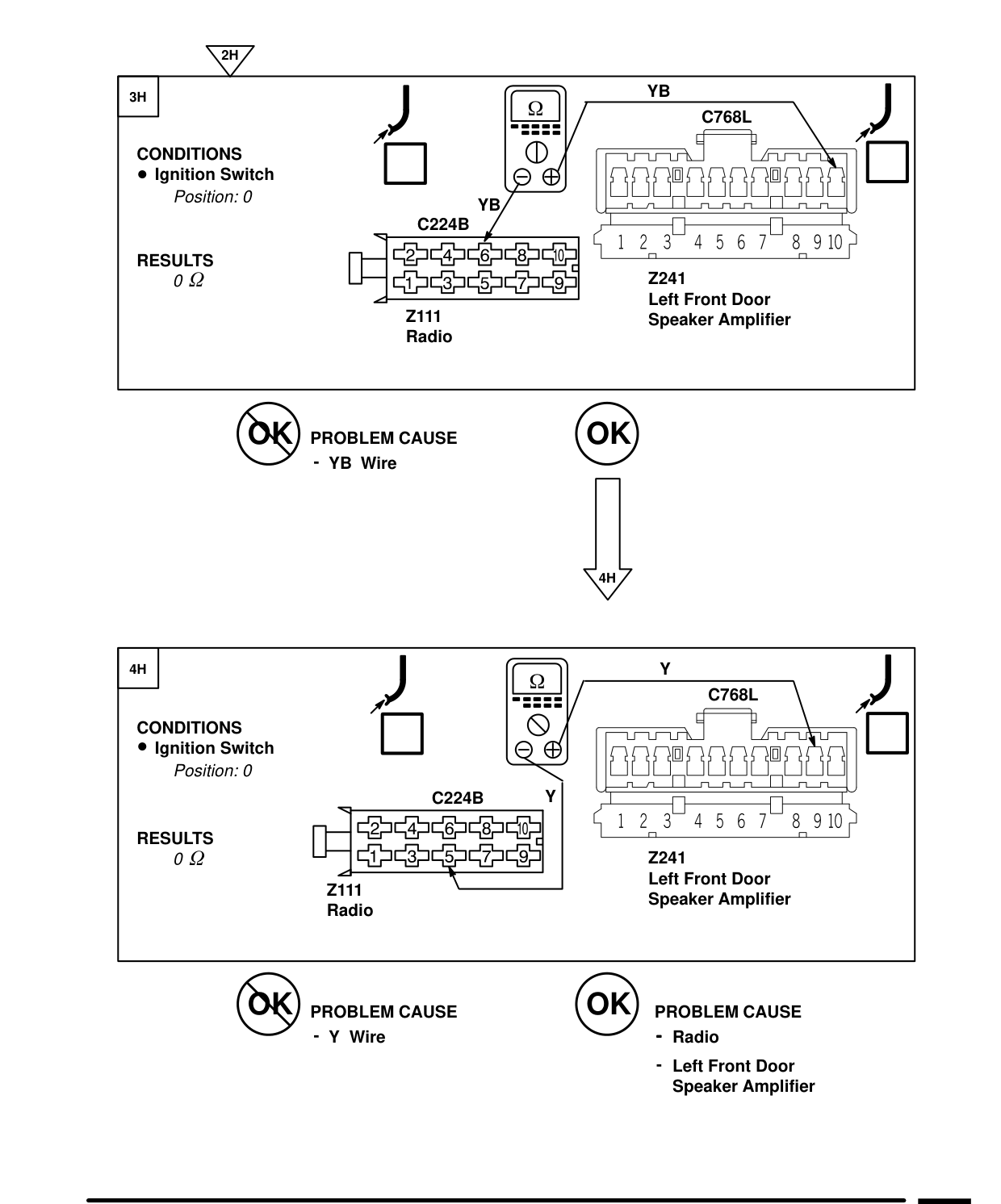

RADIO – FAULT DIAGNOSIS
2H
3H
CONDITIONS Ignition Switch
Position: 0
RESULTS
0
Z111 Radio
OK PROBLEM CAUSE - Wire YB
4H
CONDITIONS Ignition Switch
Position: 0
RESULTS
0
Z111 Radio
OK PROBLEM CAUSE - Y Wire
YB
C768L
YB C224B
Z241 Left Front Door Speaker Amplifier
OK
4H
Y
C768L
Y C224B
Z241 Left Front Door Speaker Amplifier
OK PROBLEM CAUSE - Radio - Left Front Door Speaker Amplifier
