Radio – fault diagnosis

Make

Land Rover

Model

Range Rover P38 Electrical Troubleshooting Manual

Year

1995

Section

Fault diagnosis › Radio – fault diagnosis

RadioRadio – fault diagnosis

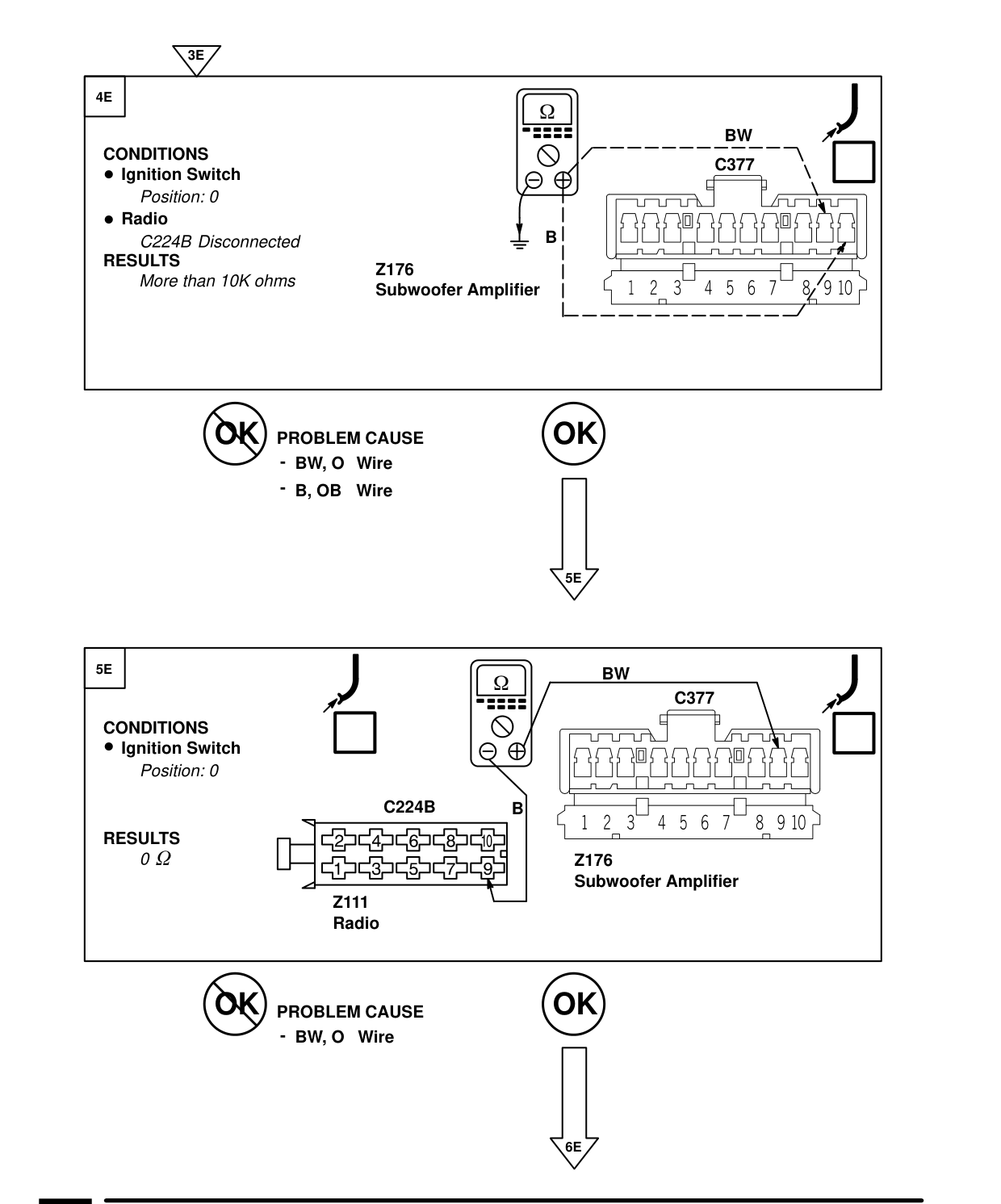

RADIO – FAULT DIAGNOSIS

3E

4E

CONDITIONS Ignition Switch

Position: 0

Radio

C224B Disconnected

RESULTS Z176

More than 10K ohms

Subwoofer Amplifier

OK PROBLEM CAUSE - Wire BW, O - B, OB Wire

5E

CONDITIONS Ignition Switch

Position: 0

RESULTS

0

Z111 Radio

OK PROBLEM CAUSE - BW, O Wire

BW C377

B

OK

5E

BW

C377

C224B B

Z176 Subwoofer Amplifier

OK

6E

14 Electrical
