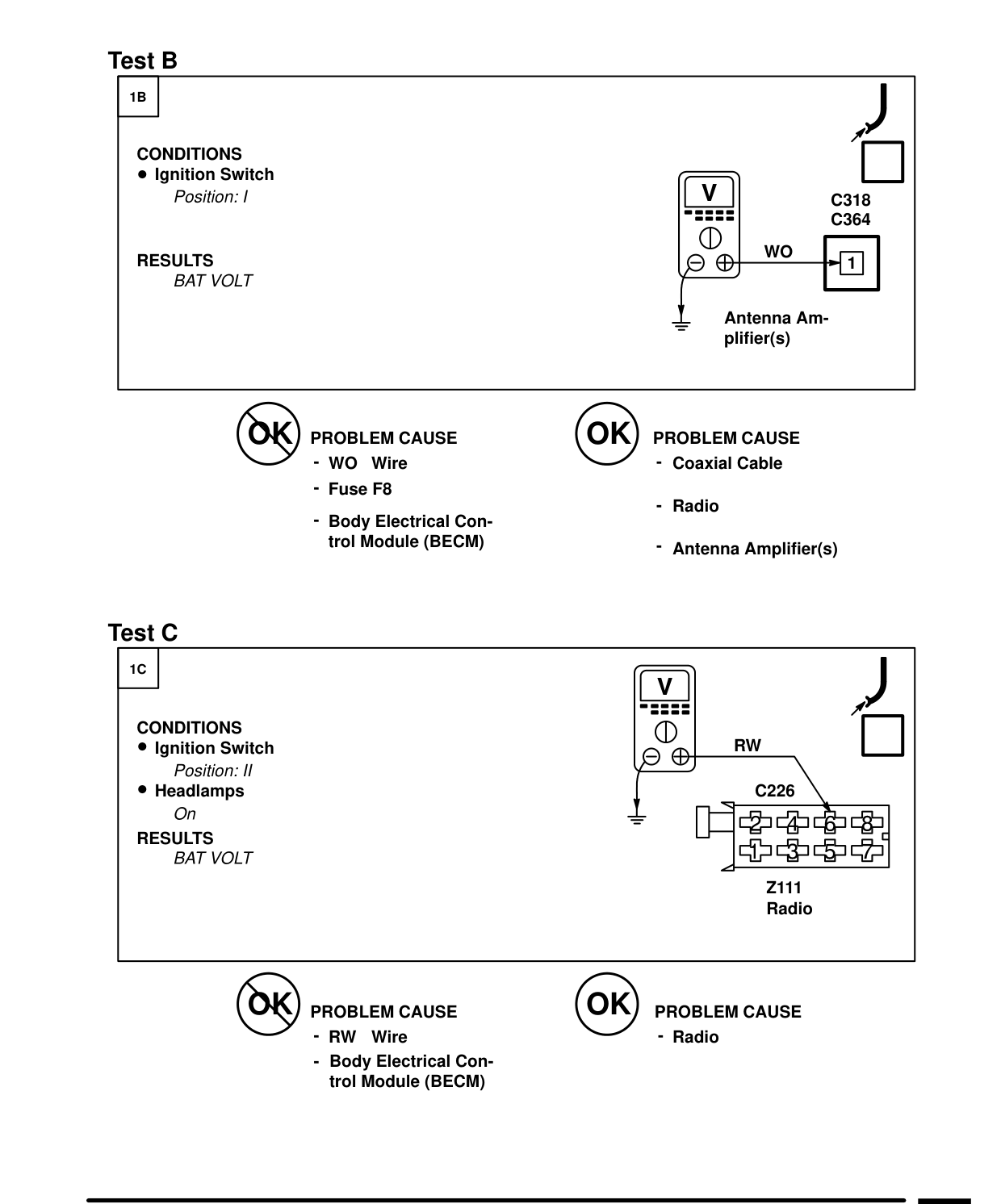

RADIO – FAULT DIAGNOSIS

Test B 1B

CONDITIONS Ignition Switch

Position: I

RESULTS

BAT VOLT

OK PROBLEM CAUSE - Wire WO - Fuse F8 - Body Electrical Con- trol Module (BECM)

Test C 1C

CONDITIONS Ignition Switch

Position: II

Headlamps

On

RESULTS

BAT VOLT

OK PROBLEM CAUSE - RW Wire - Body Electrical Con- trol Module (BECM)

C318 C364 WO 1

Antenna Am- plifier(s)

OK PROBLEM CAUSE - Coaxial Cable

- Radio

- Antenna Amplifier(s)

RW

C226

Z111 Radio

OK PROBLEM CAUSE - Radio
