PANEL REPAIRS

9

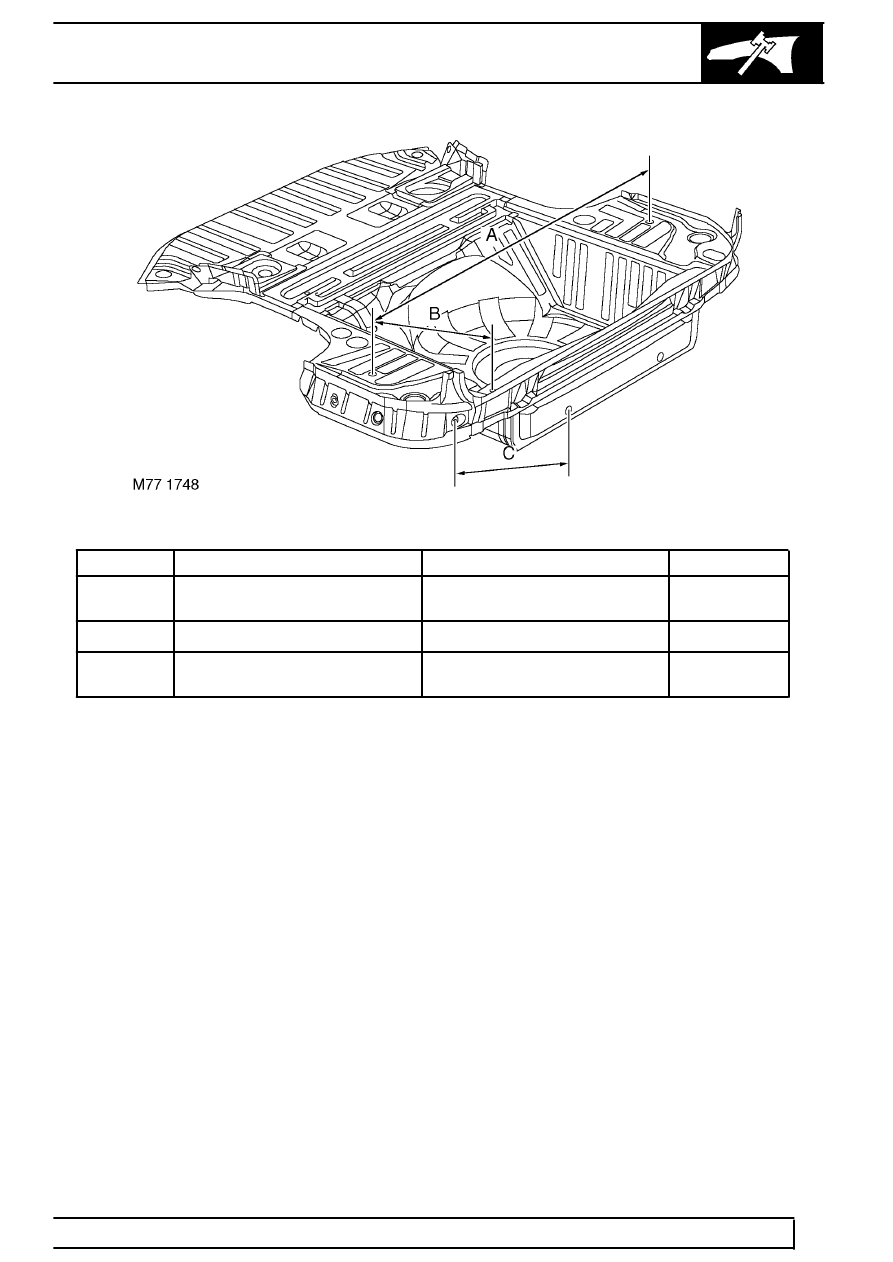

BODY DIMENSIONS

ITEM

FROM

TO

DIMENSION

A

Load floor side - top tooling hole -

RH

Load floor side - top tooling hole -

LH

1360 (53.54)

B

Load floor side - top tooling hole

Crossmember rear tooling hole

377 (14.84)

C

Load floor side - bottom tooling

hole

Lower panel - tooling hole

474.8 (18.69)
