COOLING SYSTEM
NEW RANGE ROVER
2
DESCRIPTION AND OPERATION

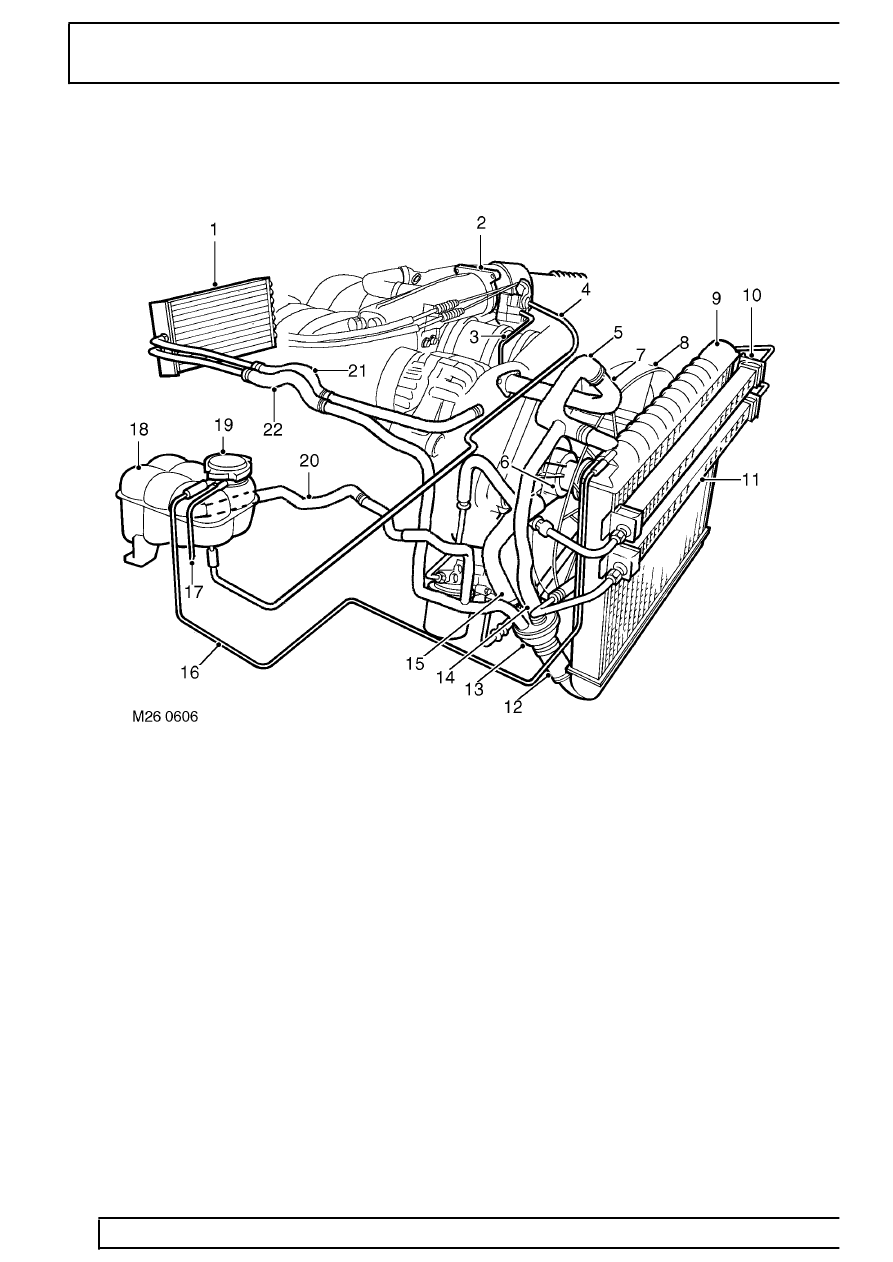

V8 cooling system component layout - from 99MY
1. Heater matrix
2. Throttle housing
3. Throttle housing inlet hose
4. Throttle housing return pipe
5. Radiator top hose
6. Coolant pump
7. Manifold outlet pipe
8. Viscous fan
9. Radiator
10. Engine oil cooler
11. Gearbox oil cooler
12. Radiator bottom hose
13. Thermostat housing
14. By-pass hose
15. Coolant pump feed hose
16. Radiator bleed pipe
17. Overflow/breather pipe
18. Expansion tank
19. Pressure cap
20. Expansion hose
21. Heater inlet hose/pipe
22. Heater return hose/pipe
