Panel repairsFront Door

Front Door

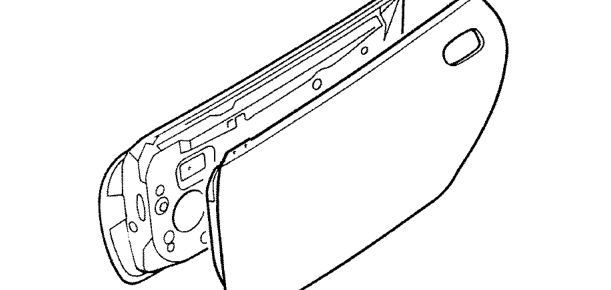

Front door

Doors are serviced both as a complete assembly and as separate outer panels.

Outer Sill

Outer sill – Doors are serviced both as a complete assembly and as separate outer panels.

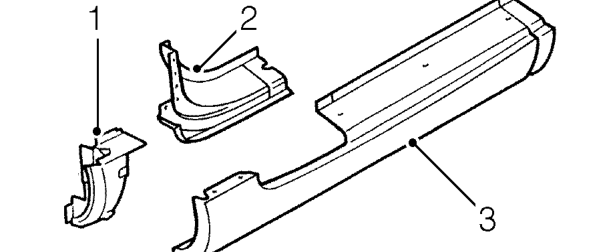

Outer sills are serviced separately as a sill front closing (1), front extension (2) and outer sill (3).

Tonneau Assembly

Tonneau assembly – Outer sills are serviced separately as a sill front closing (1), front extension (2) and o

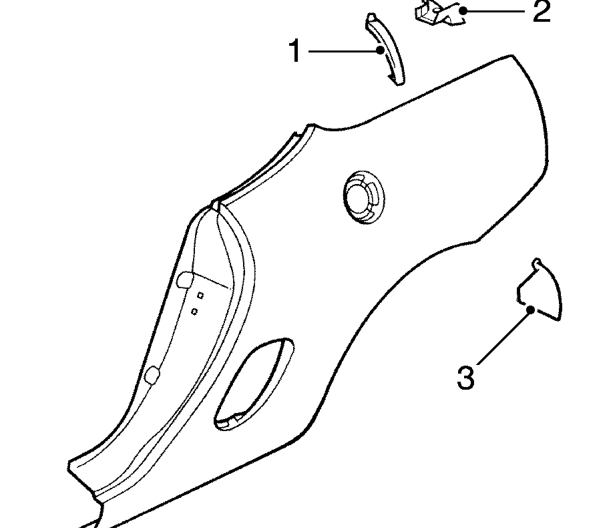

The tonneau is serviced as an assembly. The rear lamp extension (1), drain channel extension (2) and extension (3) are also serviced separately.
