Service condition of panels

SERVICE CONDITION OF PANELS

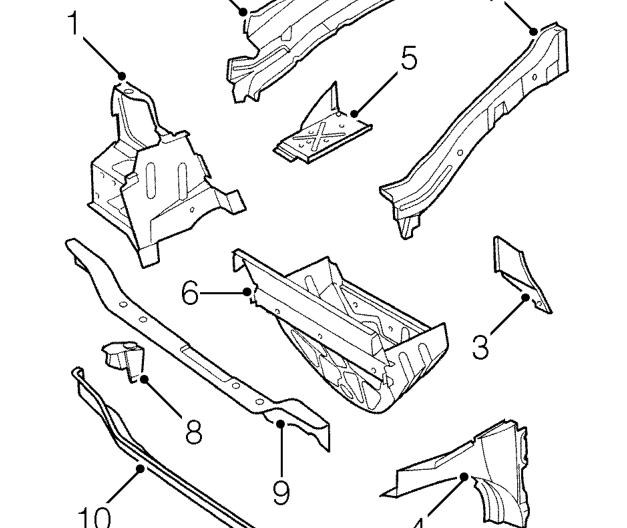

Front Panels

Front panels are serviced as assemblies and separate parts as follows:

Headlamp Mountings: Headlamp mountings (1) are serviced as an assembly.

Front Crossmember: The front crossmember is serviced as a sidemember bracket assembly (9) and lower crossmember assembly (10), including subframe brackets (8).

Front Bulkhead Assembly: The spare wheel well assembly (6), complete with spare wheel well and upper stiffener, is serviced as one panel. It is also available as an assembly with the sidemember bracket assembly and headlamp mounting.

Valance Assembly and Reinforcement: Valance assemblies (2) are serviced only as separate items. Valance reinforcements (4) are also serviced. Part valances are not serviced but may be cut from a complete panel.

Front Sidemember Assembly: Sidemembers are serviced either as a bare panel (7) or as an assembly including the front suspension lower reinforcement extension (3) and spare wheel platform assembly (5). Part sidemembers are not serviced but may be cut from a complete panel.

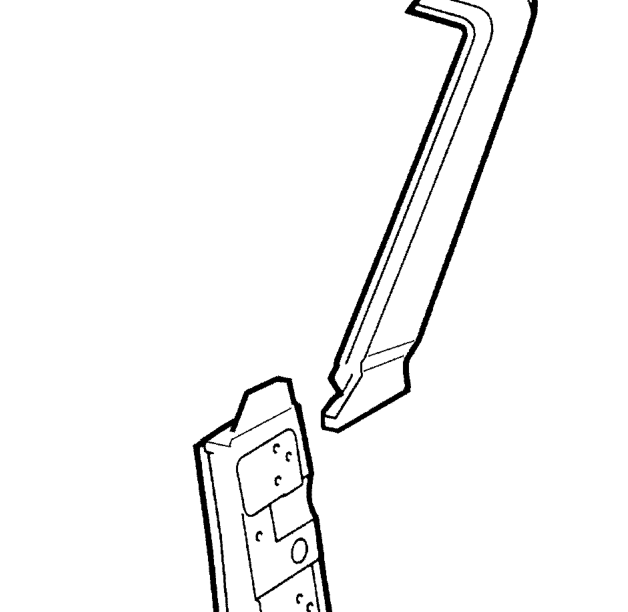

’A’ Post Assembly

The ’A’ post is serviced as a complete assembly.
