MG MGF Body Repair Manual (1995-2000)07 · Panel repairs
07 · General

Front valance section

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Repairs › Front valance section
Panel repairsFront valance section

FRONT VALANCE SECTION

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Place on safety stands.

  1. Disconnect all ECUs.
  2. Disconnect airbags and sensor system.

WARNING: See RESTRAINT SYSTEMS, Precautions.

  1. Disconnect alternator.
  2. Remove front bumper valance. See BODY, Exterior fittings.
  3. Remove front bumper armature. See BODY, Exterior fittings.
  4. Remove headlamp. See Workshop Manual, Electrical.
  5. Remove front fender.

Refit

NOTE: In this operation, the front valance section and sidemember section are replaced in combination.

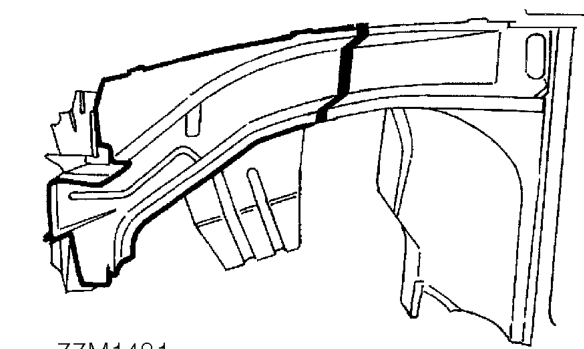

Front valance section – Remove front fender.
  1. Prepare and clean panel joint faces. Apply structural adhesive to lower flange front section.See Sealing and corrosion protection.

Cut panel to form MIG welded butt joint with existing panel.

  1. Refit front fender.
  2. Refit headlamp. See Workshop Manual, Electrical.
  3. Refit front bumper armature. See BODY, Exterior fittings.
  4. Refit front bumper valance. See BODY, Exterior fittings.
  5. Reconnect alternator.
  6. Reconnect airbags and sensor system.
  7. Reconnect all ECUs.
  8. Reconnect battery earth lead.
  9. Remove safety stands and lower vehicle.
