MG MGF Body Repair Manual (1995-2000)07 · Panel repairs
07 · General

Cavity wax

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Sealing and corrosion protection › Cavity wax
Panel repairsCavity wax

CAVITY WAX

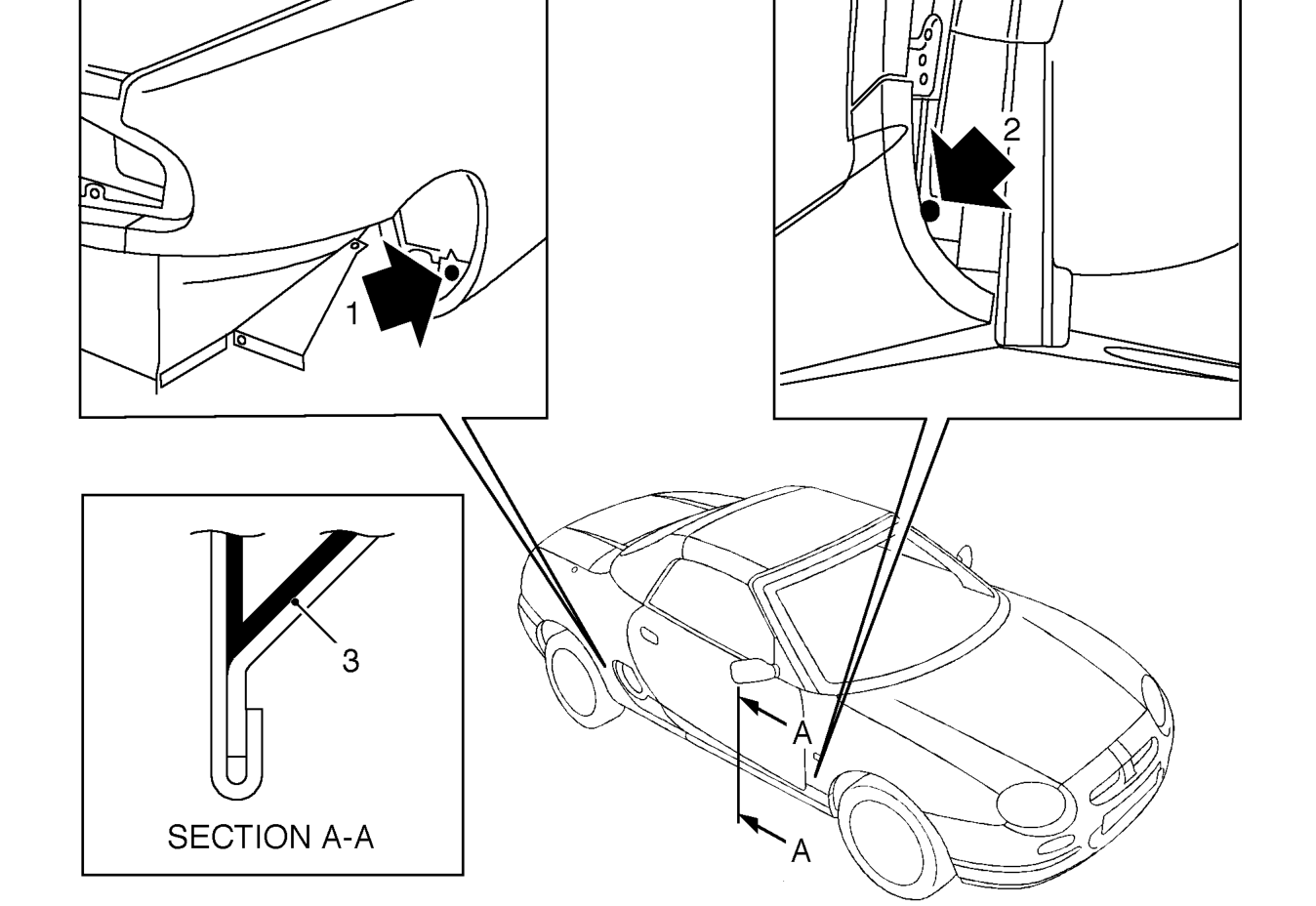

Cavity wax
  1. Injection hole at sill rear
  2. Injection hole (drilled) at sill front
  3. Injection into door cavity

All areas symmetrically opposite to those shown are also treated.

See INFORMATION, Sealing and corrosion protection.
