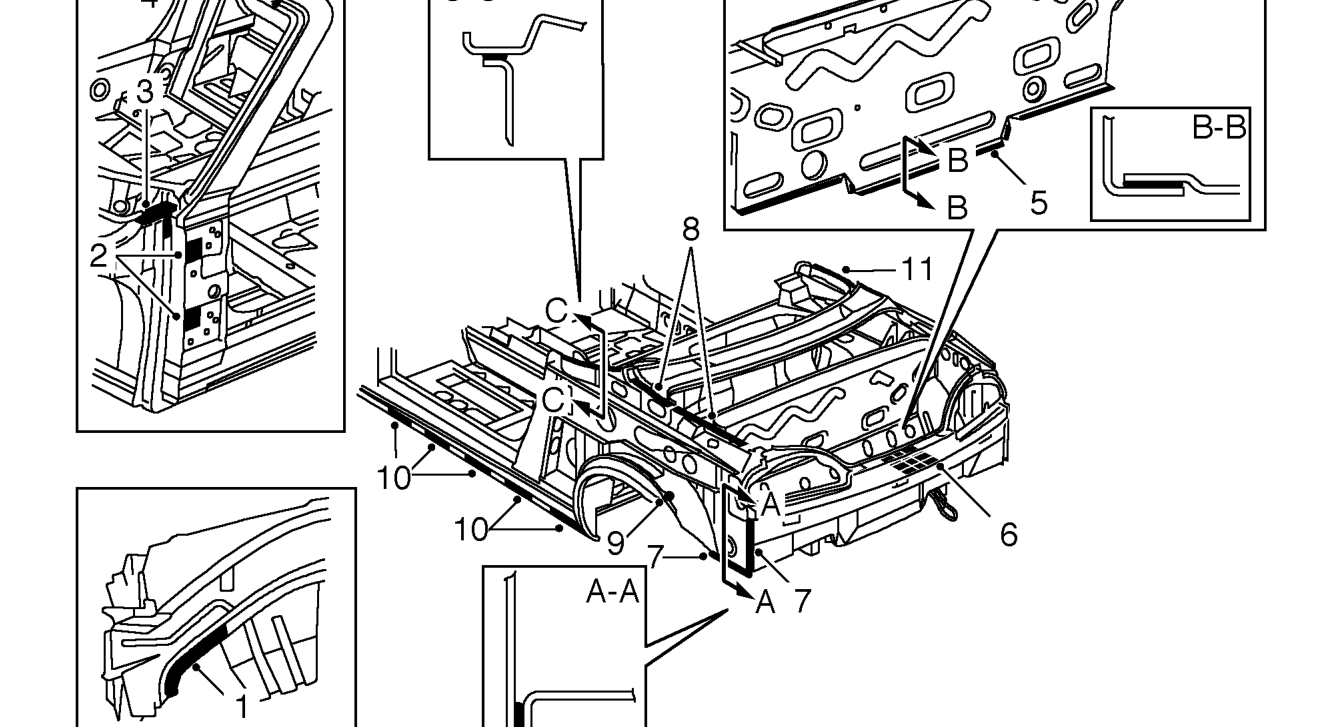

SEALING CHARTS

1. Structural adhesive
2. Structural adhesive
3. Putty, seam sealer heavy
4. Structural adhesive, seam sealer light
5. Structural adhesive, seam sealer heavy
6. Structural adhesive

All areas symmetrically opposite to those shown are also treated.

See INFORMATION, Sealing and corrosion protection.

7. Structural adhesive
8. Structural adhesive, seam sealer light
9. Putty, seam sealer heavy
10. Structural adhesive
11. Seam sealer light
