Door Glass

Door Glass

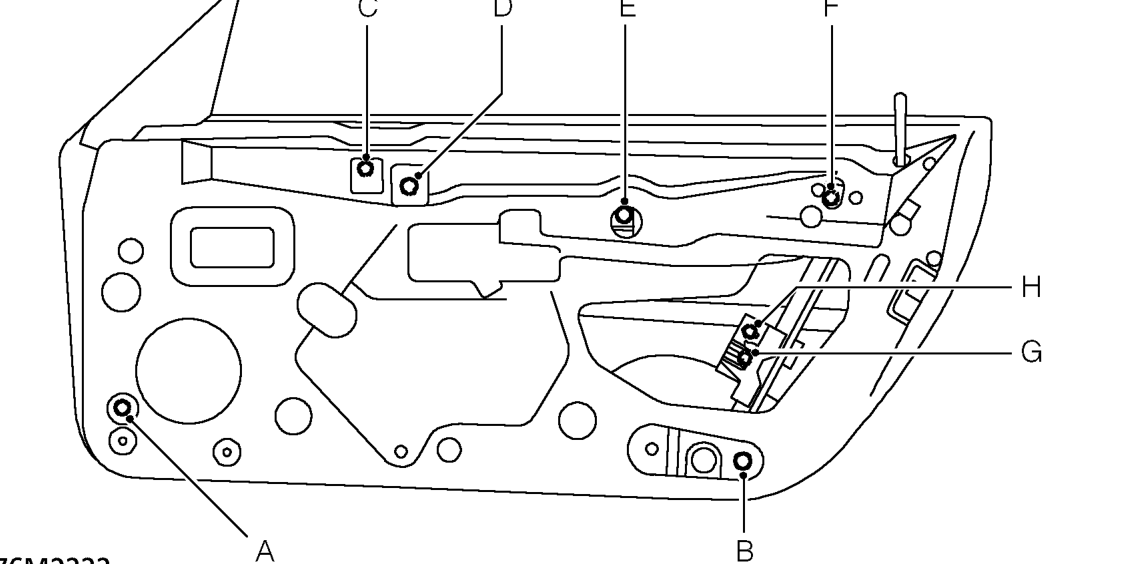

A: This gives glass deflection adjustment (pivoting at waist rail). B: This gives glass deflection adjustment (pivoting at waist rail). C: This gives glass height adjustment (this is also the glass stop). D: This gives glass lateral and vertical adjustment. E: This gives glass lateral and vertical adjustment.

F: These give glass height adjustment (this is also the glass stop). G: This is used at beginning of adjustment to position the door glass centrally in waist rail slot. Tighten bolt to 7 Nm. H: This is positioned at rear glass rail at final stage of adjustment and tightened to 7 Nm.
