HOOD ASSEMBLY COMPONENTS - HARD TOP

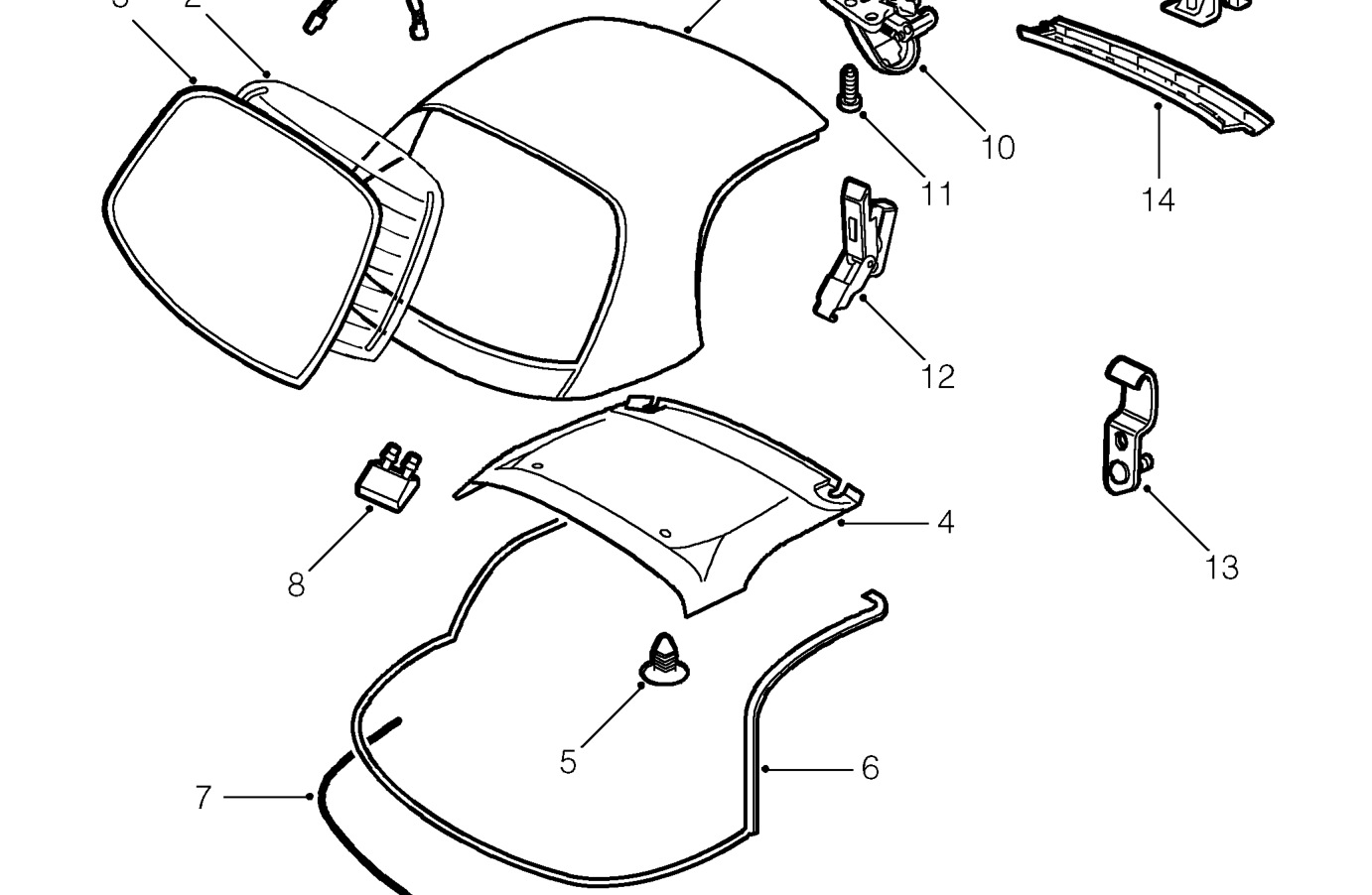

Hood assembly components - hard top
  1. Hard top assembly
  2. Backlight glass
  3. Weatherstrip - backlight
  4. Headlining
  5. Trim stud - headlining, 2 off
  6. Seal
  7. Finisher - lower edge
  8. Block spacer, 2 off
  9. Harness extension
  10. Catch assembly - front header, 2 off
  11. Screw - front catch assembly, 6 off
  12. Catch assembly - B post, 2 off
  13. Mounting plate - B post, 2 off
  14. Header finisher - front
  15. Clip - header seal, 6 off
