Hard top catch - rear

HARD TOP CATCH - REAR

Service repair no - 76.61.32

Remove

1. Remove hard top. See this section.
2. Invert hard top on a soft covered work surface.
3. Position protection over headlining and backlight.

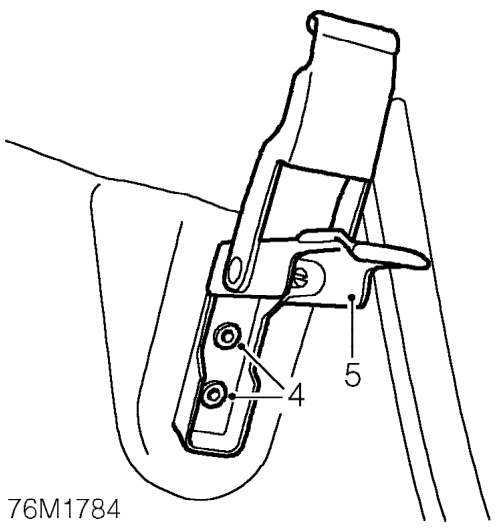

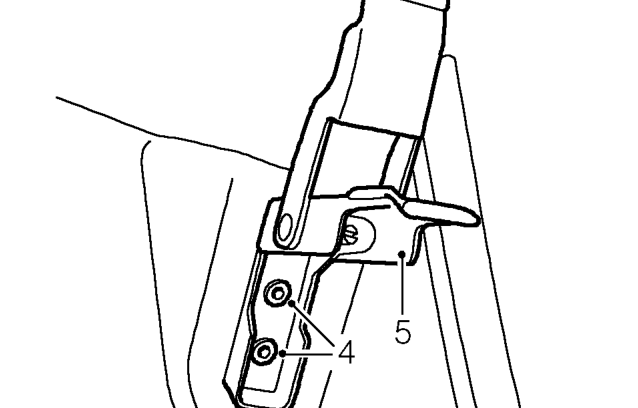

4. Drill out 2 pop rivets securing catch to hard top.
5. Remove catch.

Refit

1. Position catch and secure with rivets.
2. Fit hard top. See this section.
3. Check operation of catch. If necessary, turn adjuster to give correct action.
4. Secure catch.

HARD TOP CATCH - FRONT

Service repair no - 76.61.33

Remove

1. Remove hard top. See this section.
2. Invert hard top on a soft covered work surface.

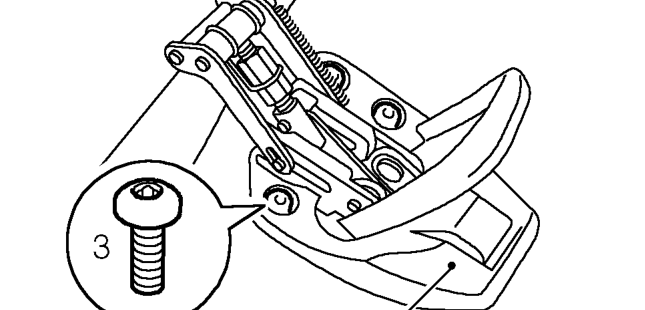

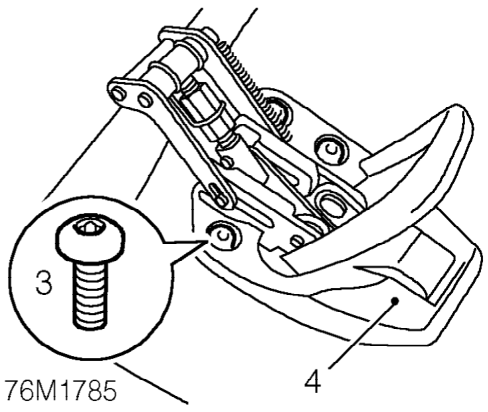

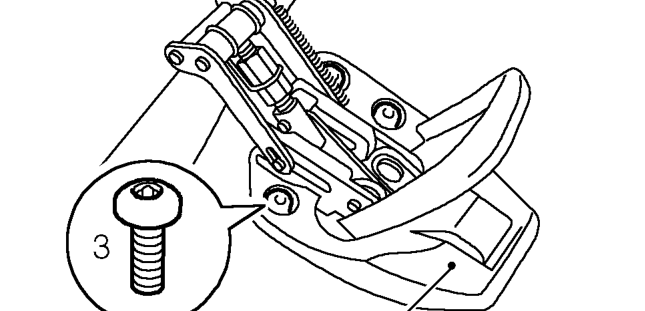

3. Remove 3 Allen screws securing catch to hard top.
4. Remove catch.

Refit

1. Position catch and tighten screws to 10 Nm.
2. Fit hard top. See this section.
3. Check operation of catch. If necessary, release locking wire and turn hexagonal adjuster to give correct action.
4. Secure locking wire.
5. Secure catch.
