Engine coolant pump

ENGINE COOLANT PUMP

Service repair no - 26.50.01

Remove

1. Disconnect battery earth lead.
2. Remove camshaft timing belt. See ENGINE, Repairs.
3. Drain cooling system. See Adjustments.

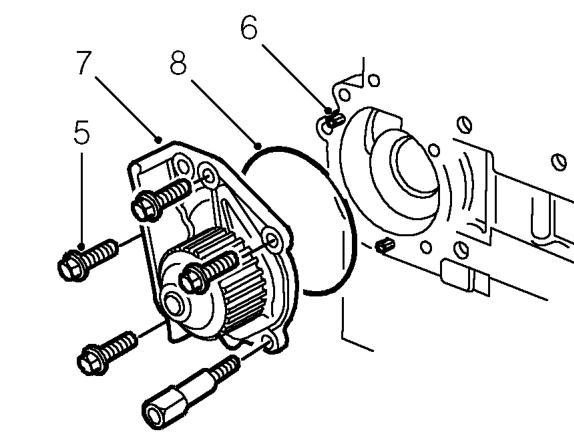

4. Remove bolt securing timing belt rear cover to coolant pump.

5. Remove 5 bolts securing engine coolant pump to cylinder block.
6. Release pump from 2 dowels.
7. Remove engine coolant pump.
8. Remove ’O’ ring seal from pump body and discard.

Refit

1. Clean pump and cylinder block mating faces.
2. Fit NEW ’O’ ring seal to pump body and fit pump to cylinder block.
3. Fit bolts securing engine coolant pump to cylinder block and tighten to 10 Nm.
4. Fit bolt securing timing belt rear cover to engine coolant pump and tighten to 10 Nm.
5. Fit camshaft timing belt. See ENGINE, Repairs.
6. Refill coolant system. See Adjustments.
