THERMOSTAT - MPi MEMS 3 (2000MY ON)

Service repair no - 26.45.09

Remove

  1. Disconnect battery earth lead.
  2. Drain cooling system. See Adjustments.

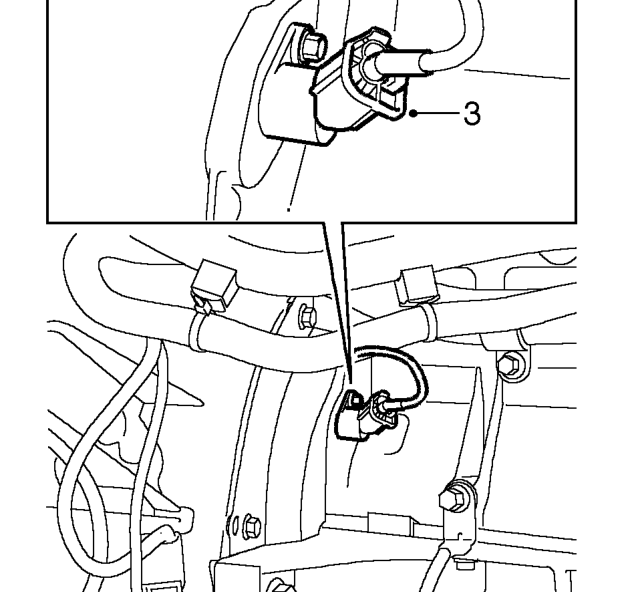

Thermostat - mpi mems 3 (2000my on) – Drain cooling system. See Adjustments.
  1. Disconnect multiplug from CKP sensor.

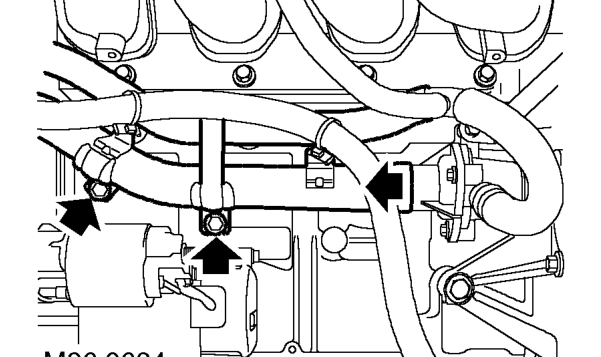

Thermostat - mpi mems 3 (2000my on) – Disconnect multiplug from CKP sensor.
  1. Remove 2 bolts securing coolant rail to cylinder block.
  2. Release coolant rail from thermostat housing.
  3. Lower vehicle.
  4. Remove engine compartment access panel. See BODY, Exterior fittings.

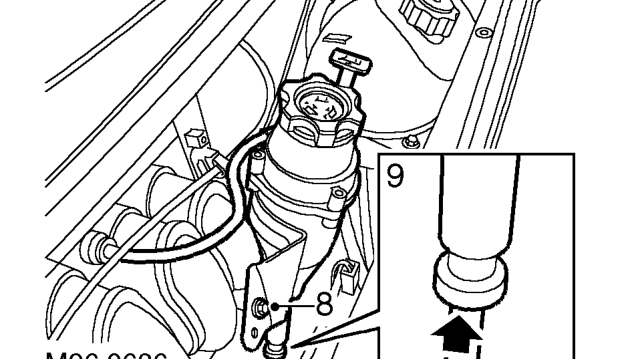

Thermostat - mpi mems 3 (2000my on) – Remove engine compartment access panel. See BODY, Exterior fittings.
  1. Remove bolt securing dipstick tube to inlet manifold.
  2. Depress collar and remove upper part of dipstick tube.

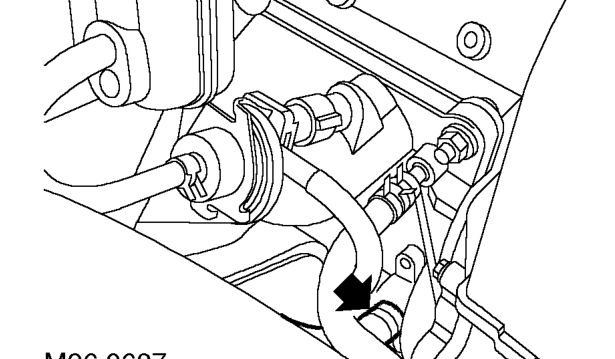

Thermostat - mpi mems 3 (2000my on) – Depress collar and remove upper part of dipstick tube.
  1. Release clip and disconnect heater hose from thermostat housing.
