Cooling systemRadiator

RADIATOR

Service repair no - 26.40.01 Service repair no - 26.40.01/20 A/C fitted

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove bonnet locking platform. See BODY, Exterior fittings.
  2. Drain cooling system. See Adjustments.
  3. Release clips securing top and bottom hoses to radiator and remove hoses.

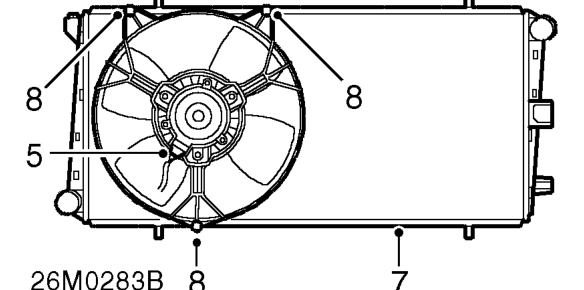

Radiator – Release clips securing top and bottom hoses to radiator and remove hoses.
  1. Disconnect multiplug from fan.
  2. Models with A/C: Disconnect multiplugs from fans.
  3. All models: Remove radiator assembly.
  4. Remove 3 nuts securing fan to radiator and remove fan.
  5. Models with A/C: Remove 6 nuts securing fans to radiator and remove fans.

Refit

  1. Fit fan/s to radiator and tighten nuts to 3 Nm.
  2. Fit radiator to lower grommets.
  3. Fit coolant hoses to radiator and secure with clips.
  4. Connect multiplug.
  5. Models with A/C: Connect multiplugs to fans.
  6. Refill cooling system. See Adjustments.
  7. Fit bonnet locking platform. See BODY, Exterior fittings.
  8. Remove stand(s) and lower vehicle.
