THERMOSTAT - MPi MEMS 1.9 (UP TO 2000MY)

Service repair no - 26.45.09

Remove

  1. Disconnect battery earth lead.
  2. Remove engine compartment access panel. See BODY, Exterior fittings.
  3. Drain cooling system. See Adjustments.
  4. Remove ignition coil - MPi. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Thermostat - mpi mems 1.9 (up to 2000my) – Remove ignition coil - MPi. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

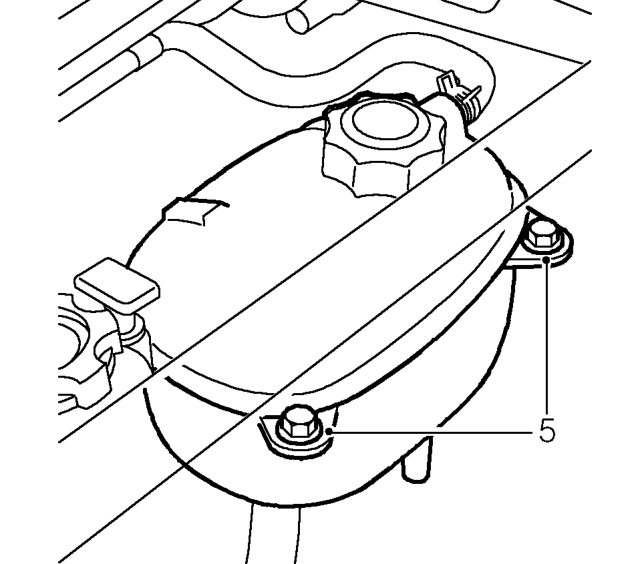

  1. Remove 2 bolts securing expansion tank and position tank aside.
Thermostat - mpi mems 1.9 (up to 2000my) – Remove 2 bolts securing expansion tank and position tank aside.

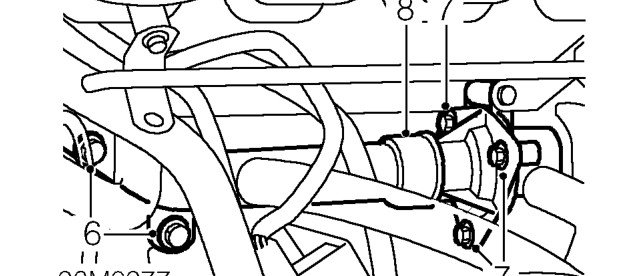

  1. Remove 2 bolts securing coolant rail to cylinder block.
  2. Remove 3 bolts securing thermostat housing cover.
  3. Position coolant rail aside and remove thermostat.

Refit

  1. Clean sealing faces.
  2. Fit thermostat.
  3. Position housing and tighten bolts to 9 Nm.
  4. Position coolant rail and tighten bolts to 9 Nm.
  5. Fit ignition coil - MPi. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  6. Position expansion tank and secure with bolts.
  7. Connect battery earth lead.
  8. Refill cooling system. See Adjustments.
  9. Fit engine compartment access panel. See BODY, Exterior fittings.
