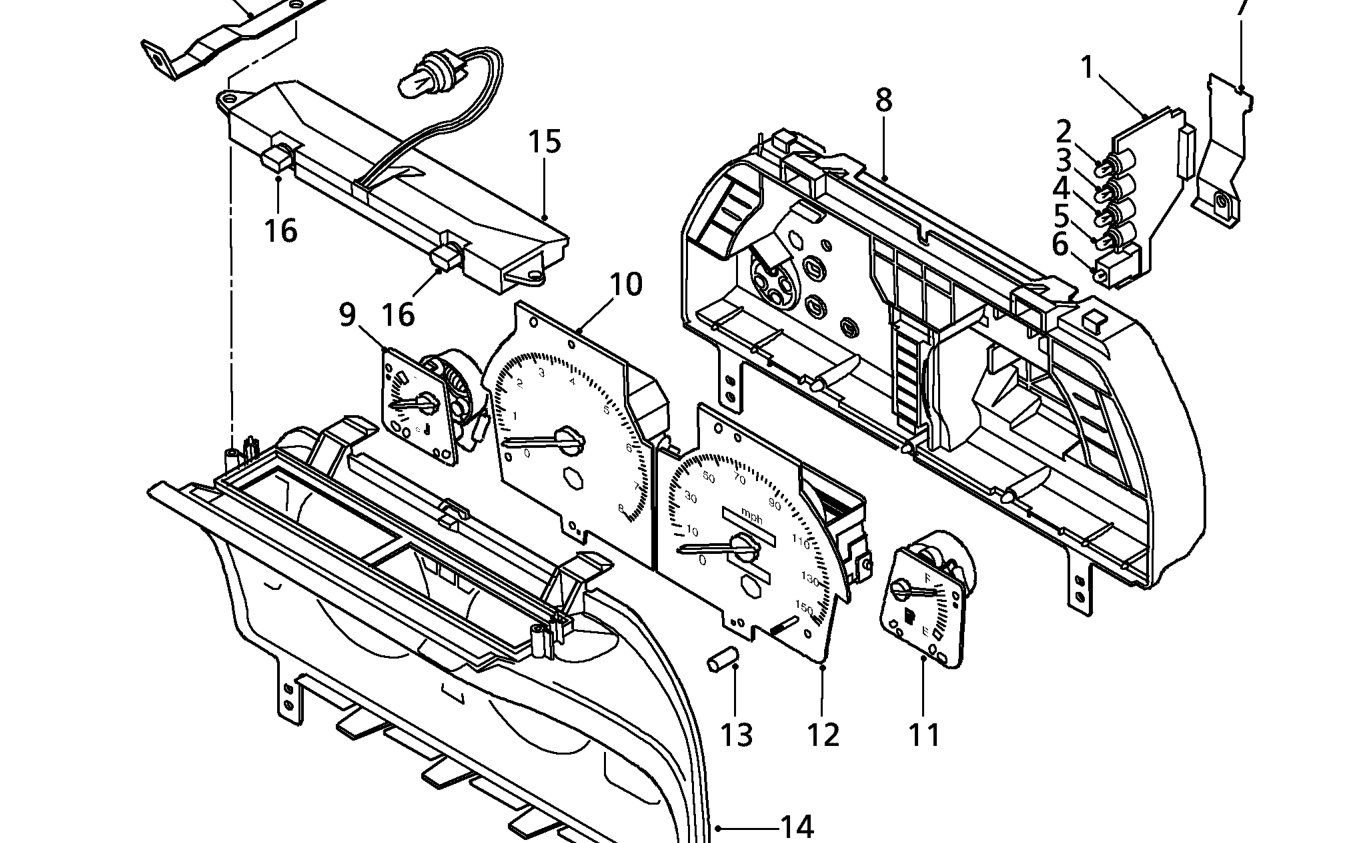

INSTRUMENT PACK COMPONENTS - EXPLODED VIEW

Instrument pack components - exploded view

(Up to 2000MY instrument pack shown, From 2000MY similar)

  1. Printed circuit board
  2. EPAS - warning light bulb
  3. Seat belt - warning light bulb
  4. Oil temperature - warning light bulb (VVC only)
  5. SRS - warning light bulb
  6. Anti-theft warning LED
  7. Circuit board cover
  8. Instrument panel housing
  9. Coolant temperature gauge
  10. Tachometer
  11. Fuel gauge
  12. Speedometer
  13. Control knob - trip distance
  14. Instrument panel and face plate
  15. Panel illumination and printed circuit
  16. Panel front illumination bulbs
  17. Support bracket
