Oil temperature gauge (Instruments)

Make

MG

Model

MGF Factory Workshop Manual

Year

1995–2000

Section

Description and operation › Oil temperature gauge

InstrumentsOil temperature gauge

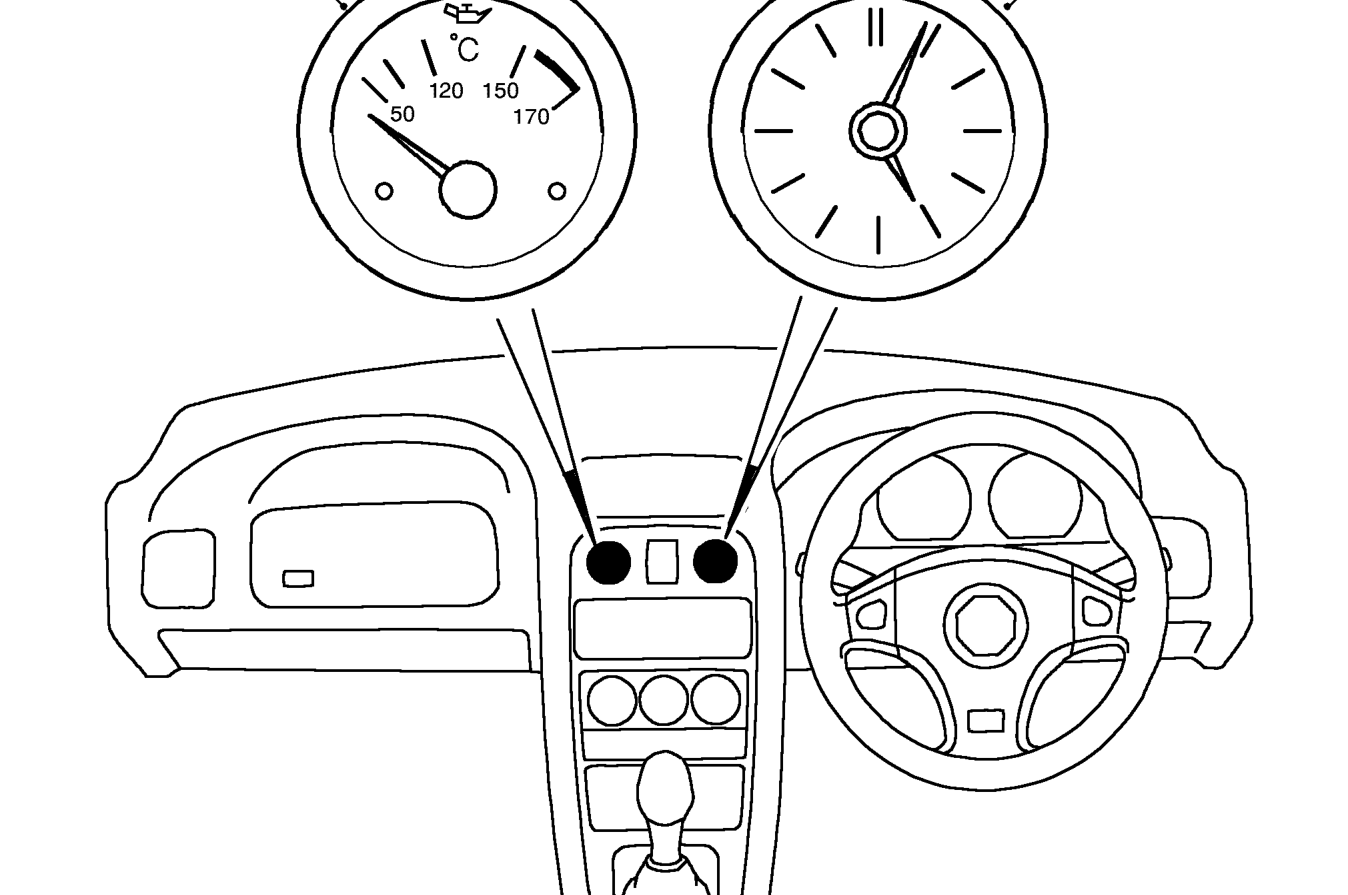

1. Oil temperature gauge
2. Analogue clock

Oil temperature gauge

Th oil temperature gauge (1) is fitted with a return magnet causing the gauge to return to zero when the ignition is switched off.

150°C sender (To - VIN 001017)

Sender resistance	Temperature
221 Ω ± 26 Ω	60°C
83 Ω ± 8 Ω	90°C
36 Ω ± 27 Ω	120°c

170°C sender (from - VIN 001018)

Sender resistance	Temperature
574 Ω ± 71 Ω	60°C
202 Ω ± 24 Ω	90°C
84 Ω ± 9 Ω	120°C

22 Electrical
