InstrumentsClock

CLOCK

Service repair no - 88.15.07

Remove

  1. Remove centre console panel. See BODY, Interior trim components.

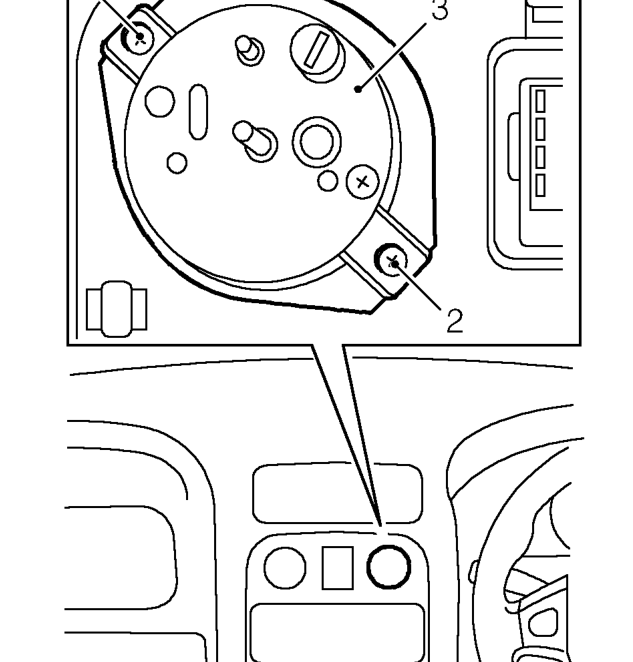

Clock – Remove centre console panel. See BODY, Interior trim components.
  1. Remove 2 screws securing clock to console.
  2. Remove retaining bracket, clock and ’O’ ring.

Refit

  1. Position ’O’ ring and clock to console.
  2. Fit retaining bracket and secure with screws.

NOTE: Ensure correct orientation of clock in console.

  1. Fit centre console panel. See BODY, Interior trim components.

INSTRUMENT PACK - UP TO 2000MY

Service repair no - 88.20.01/99

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the SRS system safe. See RESTRAINT SYSTEMS, Precautions.
  2. Remove instrument cowl. See this section.

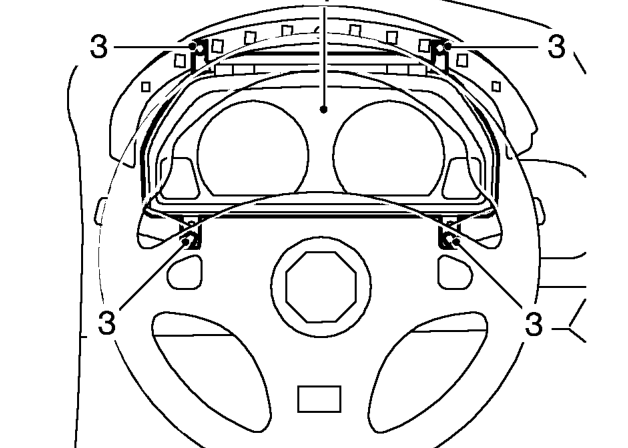

Instrument pack - up to 2000my – Remove instrument cowl. See this section.
  1. Remove 4 screws securing instrument pack to fascia.
  2. Release instrument pack from fascia.
