MG MGF Factory Workshop Manual (1995-2000)22 · Instruments
22 · Electrical

Instrument pack - 2000my on

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Instrument pack - 2000my on
InstrumentsInstrument pack - 2000my on

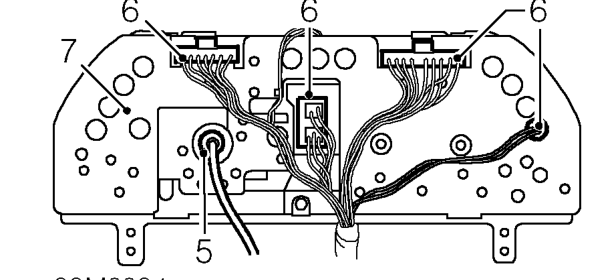

Diagram
  1. Disconnect speedometer cable.
  2. Release 3 multiplugs and bulb holder from pack.
  3. Remove instrument pack.

Refit

  1. Position instrument pack to fascia and connect multiplugs.
  2. Connect bulb holder and speedometer cable.
  3. Position instrument pack and secure with screws.
  4. Fit instrument cowl. See this section.

INSTRUMENT PACK - 2000MY ON

Service repair no - 88.20.01/99

WARNING: See RESTRAINT SYSTEMS, Precautions.

Remove

  1. Make the system safe. See RESTRAINT SYSTEMS, Precautions.
  2. Remove instrument cowl. See this section.

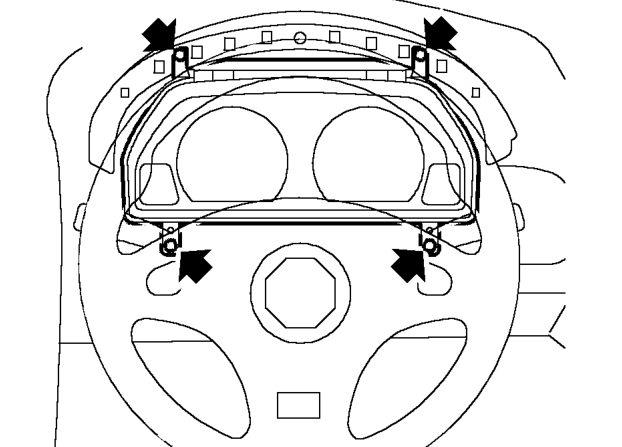

Instrument pack - 2000my on – Remove instrument cowl. See this section.
  1. Remove 4 screws securing instrument pack to fascia.
  2. Release instrument pack from fascia.

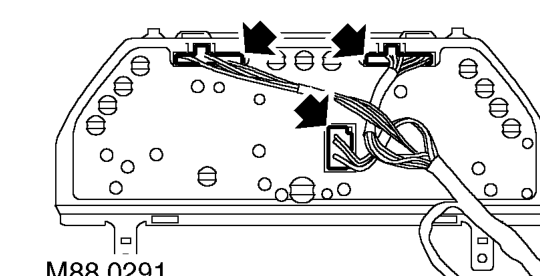

Instrument pack - 2000my on – Release instrument pack from fascia.
  1. Release 3 multiplugs from pack.
  2. Remove instrument pack.
