InstrumentsEngine oil temperature gauge sensor

ENGINE OIL TEMPERATURE GAUGE SENSOR

Service repair no - 88.25.21

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

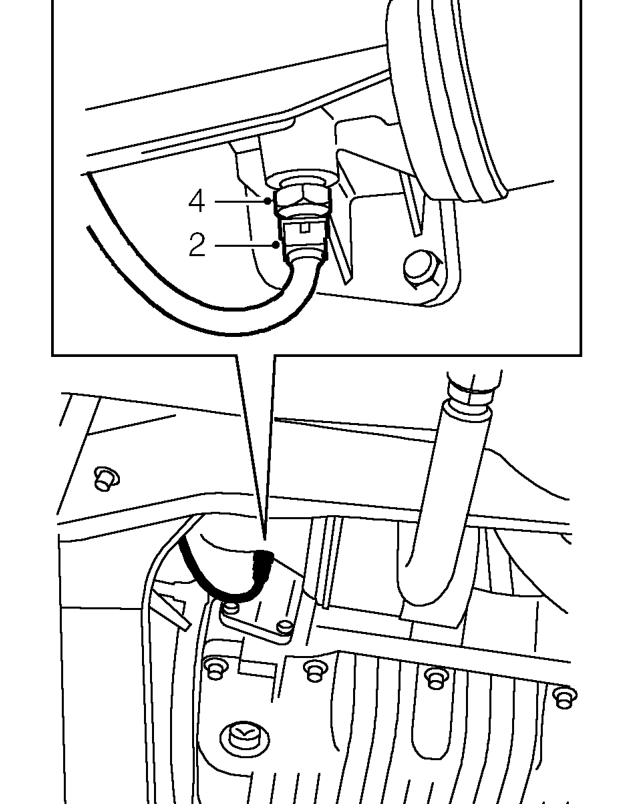

Engine oil temperature gauge sensor – Raise rear of vehicle.
  1. Disconnect multiplug from sensor.
  2. Position spillage tray.
  3. Remove sensor from oil filter housing.

Refit

  1. Fit oil temperature sensor to oil filter housing and tighten to15 Nm.
  2. Remove spillage tray.
  3. Connect multiplug to sensor.
  4. Remove stand(s) and lower vehicle.
  5. Check and top up engine oil level. See MAINTENANCE.

FUEL GAUGE

Service repair no - 88.25.26

Remove

  1. Remove instrument pack window. See this section.

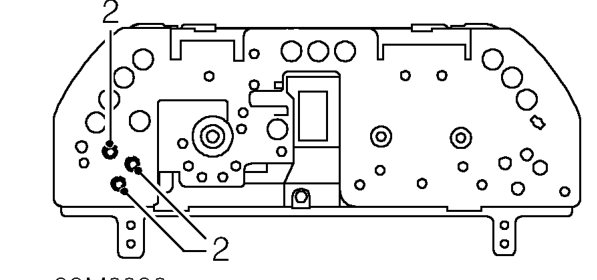

Fuel gauge – Remove instrument pack window. See this section.
  1. Remove 3 screws securing fuel gauge to casing.
  2. Remove gauge.

Refit

  1. Fit gauge to instrument pack and secure with screws.
  2. Fit instrument pack window. See this section.
